Installation Procedure
WARNING:
Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.
WARNING:
Wrap a shop towel around the fuel pressure connection in order to reduce the risk of fire and personal injury. The towel will absorb any fuel leakage that occurs during the connection of the fuel pressure gauge. Place the towel in an approved container when the connection of the fuel pressure gauge is complete.
CAUTION:
Clean all of the following areas before performing any disconnections in order to avoid possible contamination in the system:
- The fuel pipe connections
- The hose connections
- The areas surrounding the connections
- Relieve the fuel pressure. Refer to Fuel Pressure Relief .

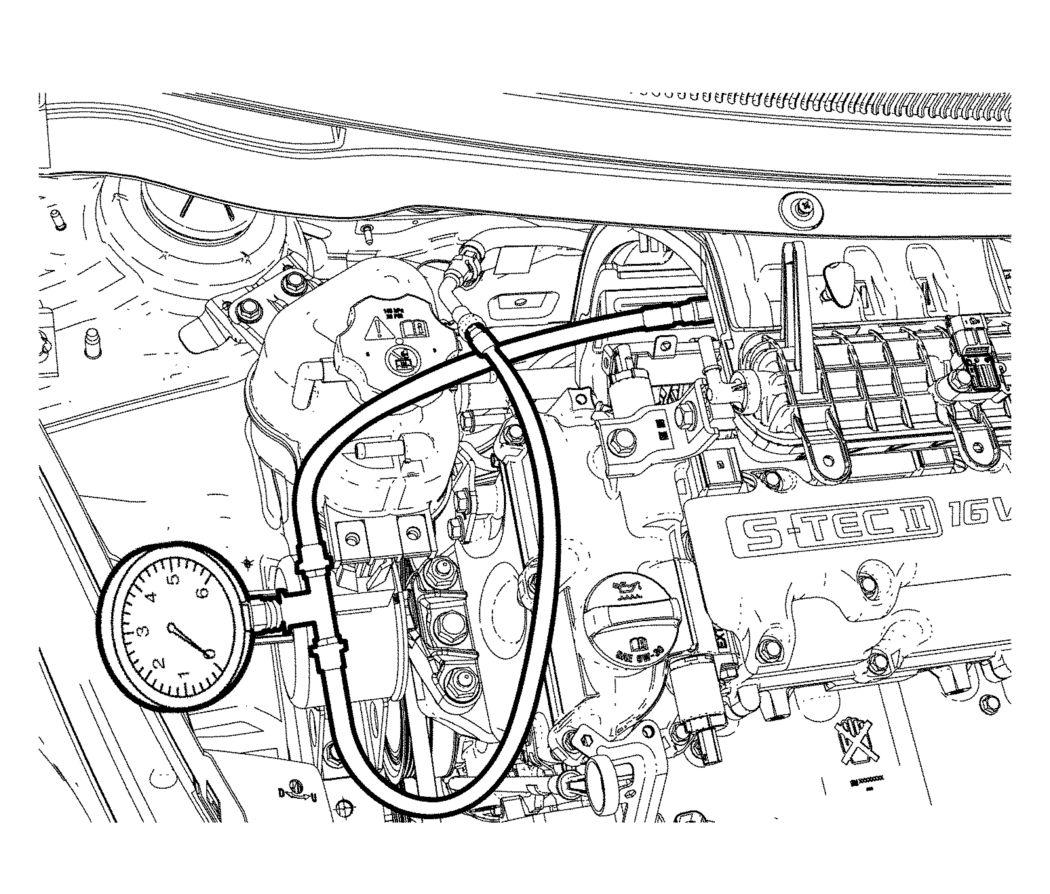

- Attach the EN-49495 fuel pressure gauge to the fuel feed pipe and fuel rail.
- Start the engine
- Read the fuel pressure from the pressure gauge.
Nominal value
380 kPa (3.8 bar)
