Fuel Pump Replacement

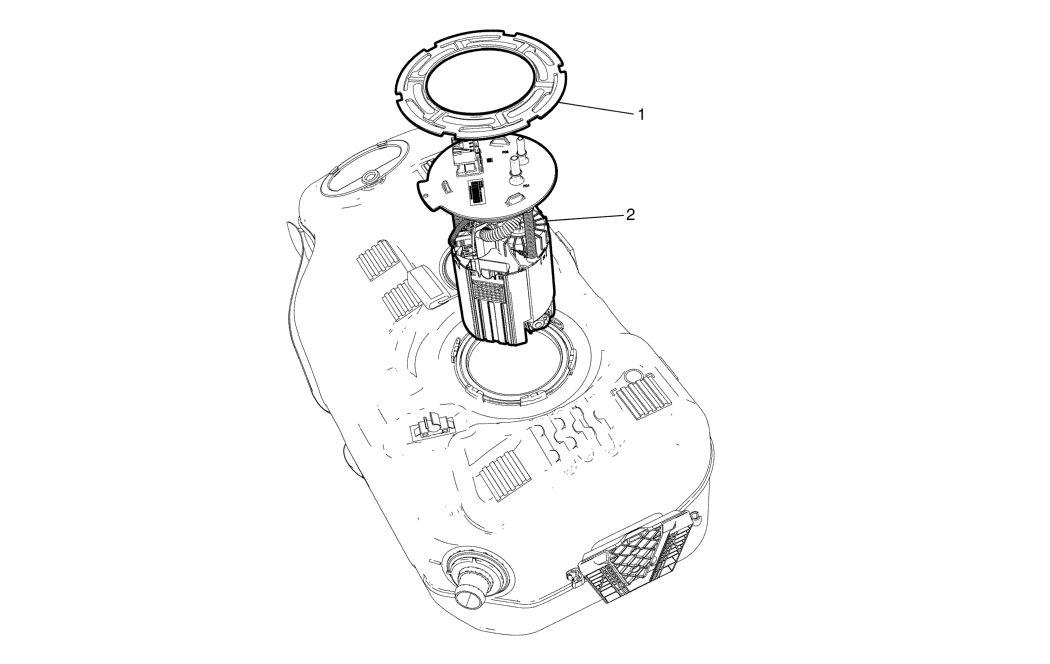

Fig 1: Fuel Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement . Disconnect the evaporative emission vent pipe connector and fuel feed connector.
1	Fuel Pump Lock Ring CAUTION: Refer to Fastener Caution . Procedure Remove the fuel pump lock ring using J-45747 fuel sending unit wrench. Special Tools J-45747 Fuel Sending Unit Wrench For equivalent regional tools, refer to Special Tools .
2	Fuel Pump

Callout

Component Name

Preliminary Procedures

Remove the fuel tank. Refer to Fuel Tank Replacement .
Disconnect the evaporative emission vent pipe connector and fuel feed connector.

Fuel Pump Lock Ring

CAUTION:

Refer to Fastener Caution .

Procedure
Remove the fuel pump lock ring using J-45747 fuel sending unit wrench.
Special Tools
J-45747 Fuel Sending Unit Wrench
For equivalent regional tools, refer to Special Tools .

Fuel Pump
