Fuel Tank Pressure Sensor Replacement

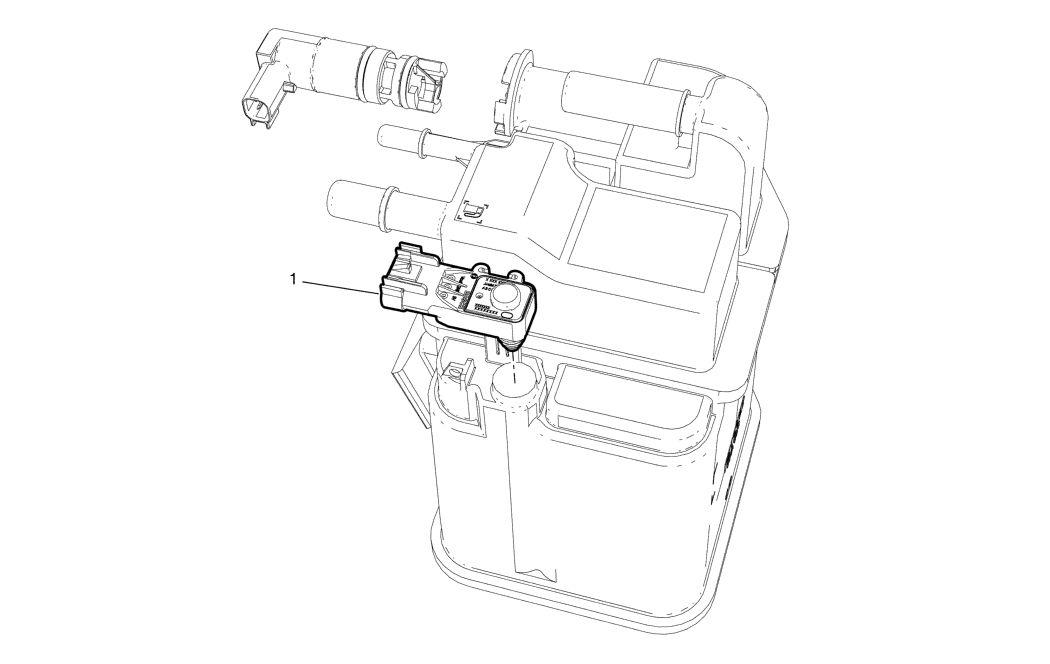

Fig 1: Fuel Tank Pressure Sensor
GM2810083Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Tank Pressure Sensor

Procedure

  1. Disconnect the fuel tank pressure sensor electrical connector.
  2. Remove the fuel tank pressure sensor.
