Mass Airflow Sensor Replacement

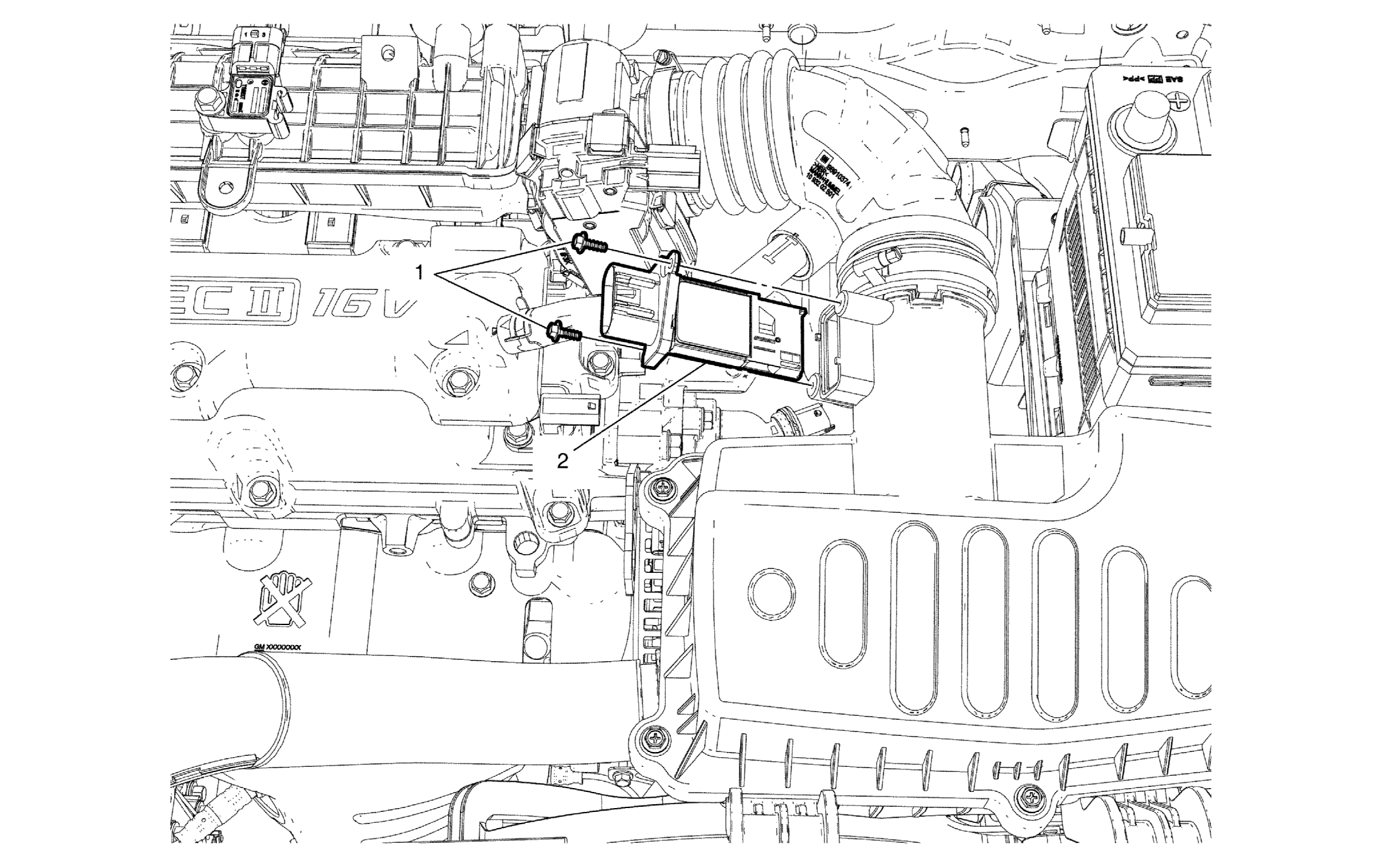

Fig 1: Mass Airflow Sensor
GM2809761Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor Replacement

Callout Component Name
Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Mass Airflow Sensor Bolt (Qty 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 (18 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical wiring harness connector.
