Spark Plug Replacement

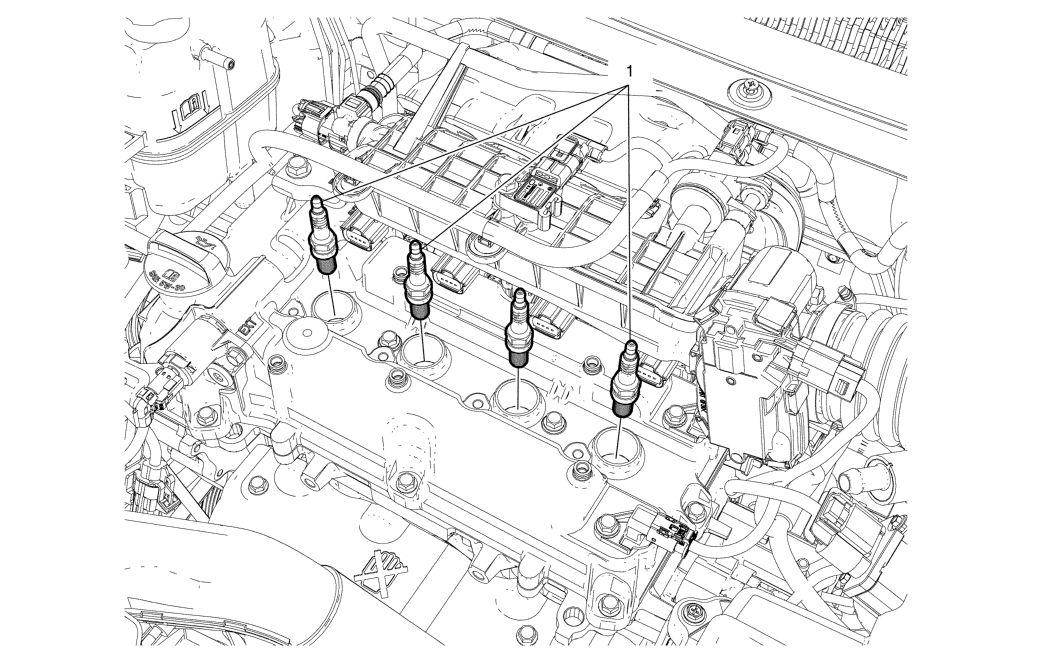

Fig 1: Spark Plug
GM2810144Courtesy of GENERAL MOTORS COMPANY
Spark Plug Replacement

Callout Component Name
Preliminary Procedure
Remove the ignition coil. Refer to Ignition Coil Replacement .
1 Spark Plug
CAUTION:

Refer to Fastener Caution .


Procedure
Remove the spark plug (1).
Tighten
20 (15 lb ft)
