Subsystem References (3 of 5)

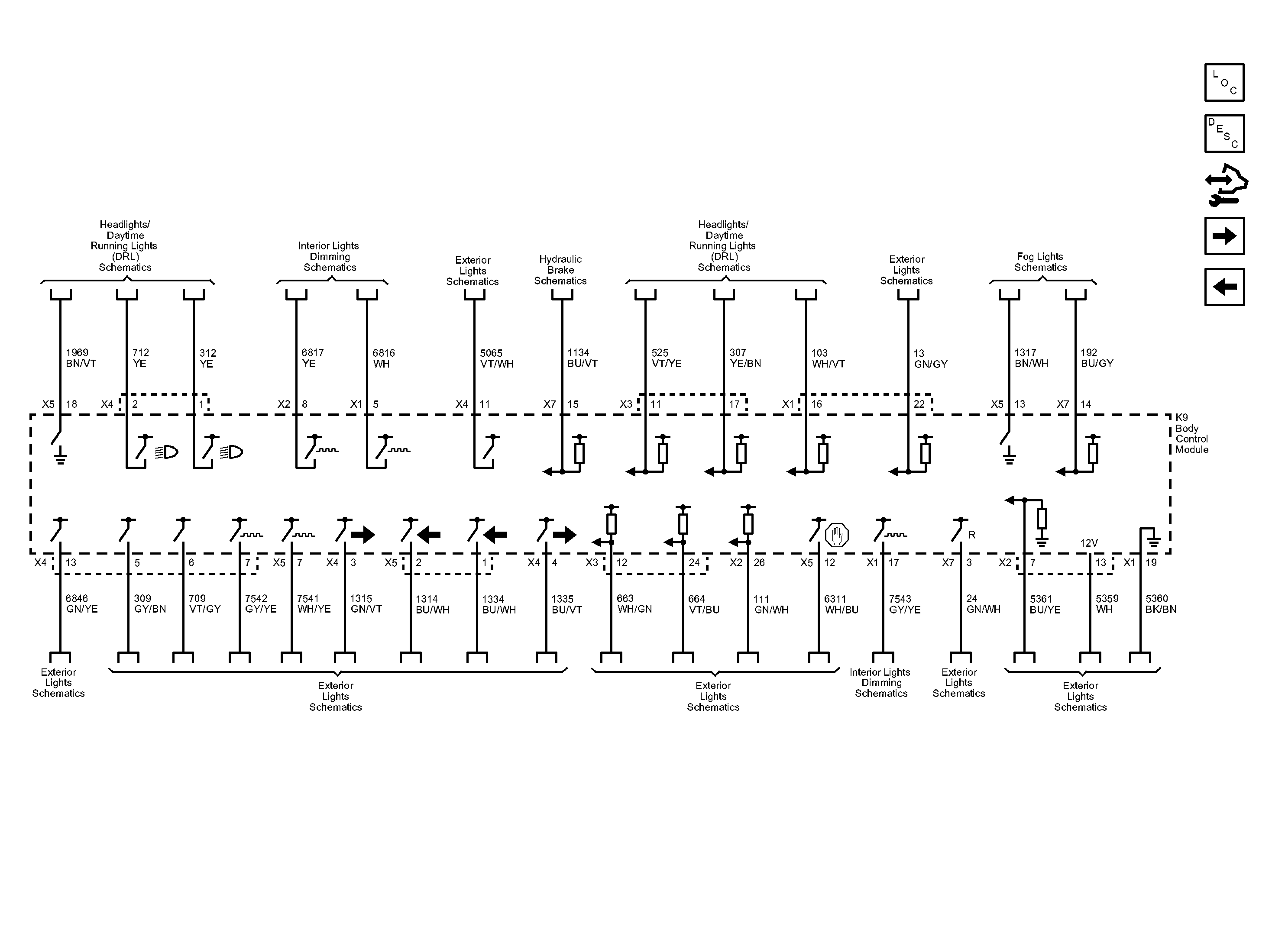

Fig 1: Subsystem References (3 of 5) Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
