Front Seat Belt Guide Adjuster Replacement

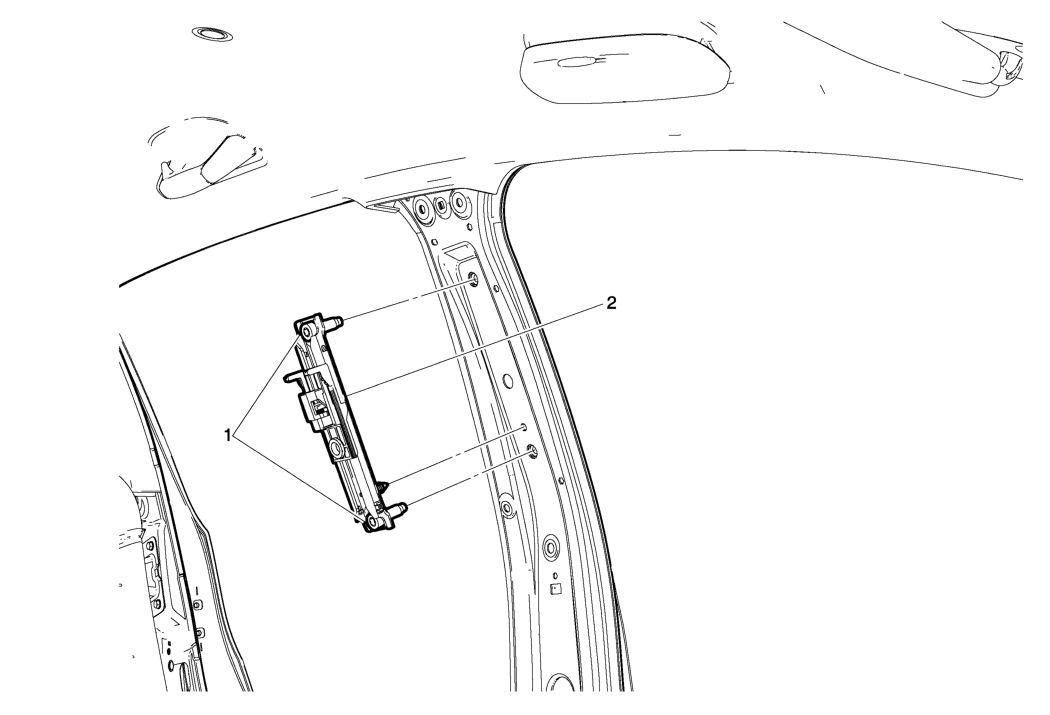

Fig 1: Front Seat Belt Guide Adjuster
GM2309269Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Guide Adjuster Replacement

Callout Component Name
Preliminary Procedure
Remover center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
1 Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Front Seat Shoulder Belt Guide Adjuster Assembly
