Installation Procedure

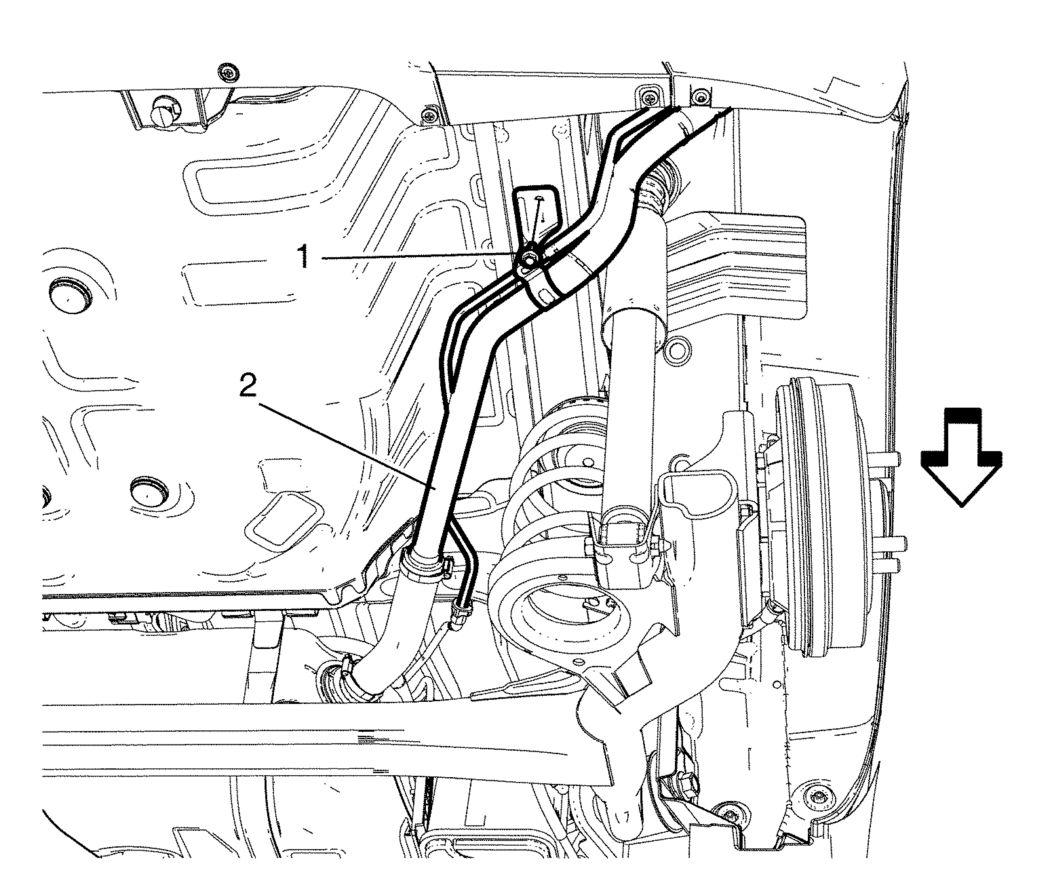

- Install the fuel tank filler pipe assembly (2).
- Install the fuel tank filler pipe lower bolt (1) and tighten to 6 (53 lb in).
- Connect the fuel tank filler hose (1) and clamp,
- Tighten fuel tank filler hose clamp to 6 (53 lb in).
- Connect the fuel tank vent pipe connector (2).
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle .

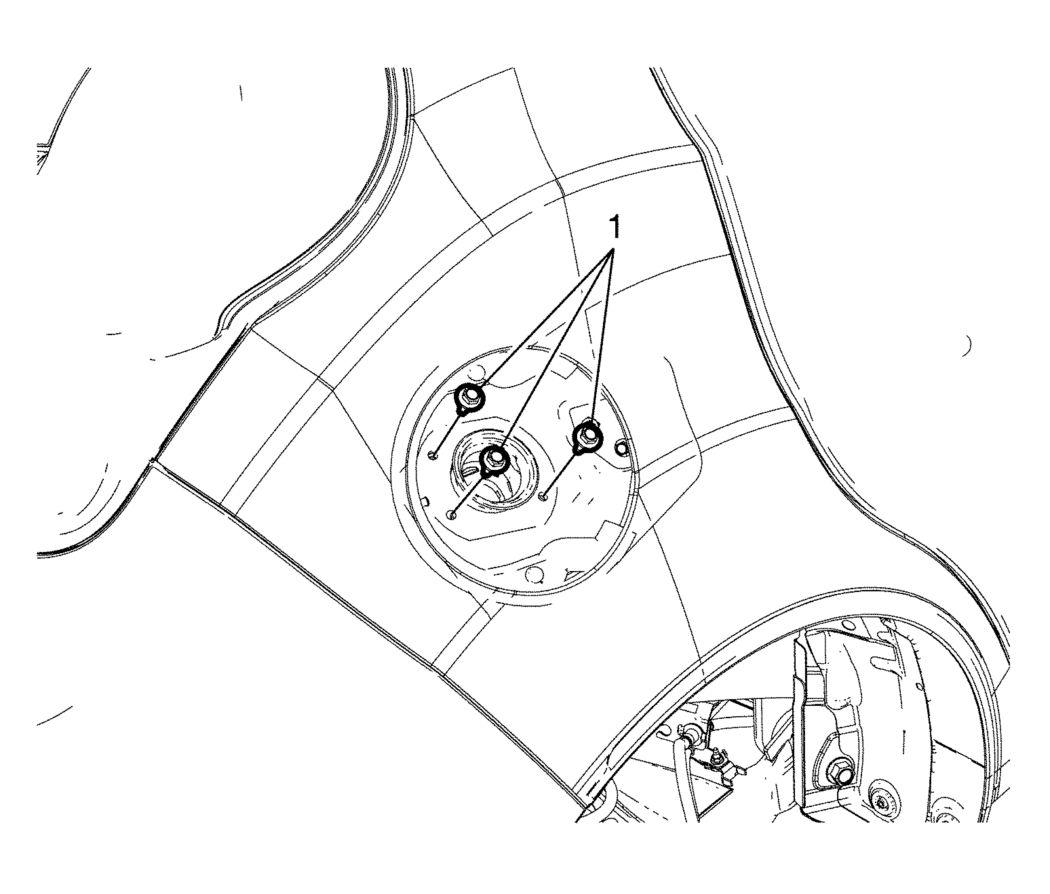

- Install the fuel filler pipe upper bolts (1) and tighten to 6 (53 lb in).
- Close the fuel filler door and filler cap.
CAUTION:
Refer to Fastener Caution .
