Object Alarm Module X2 (UD7)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

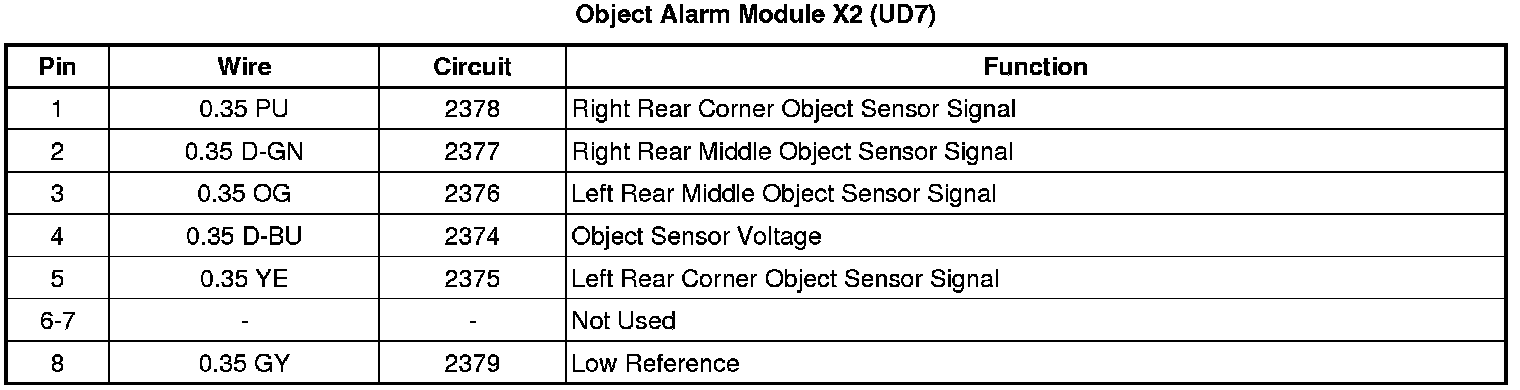

Object Alarm Module X2 (UD7)

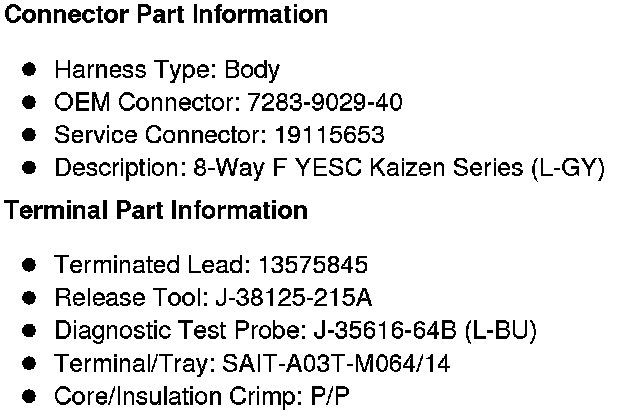

Component Connector End Views
Object Alarm Module X2 (UD7)
