Short Range Radar Sensor Replacement (Rear)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

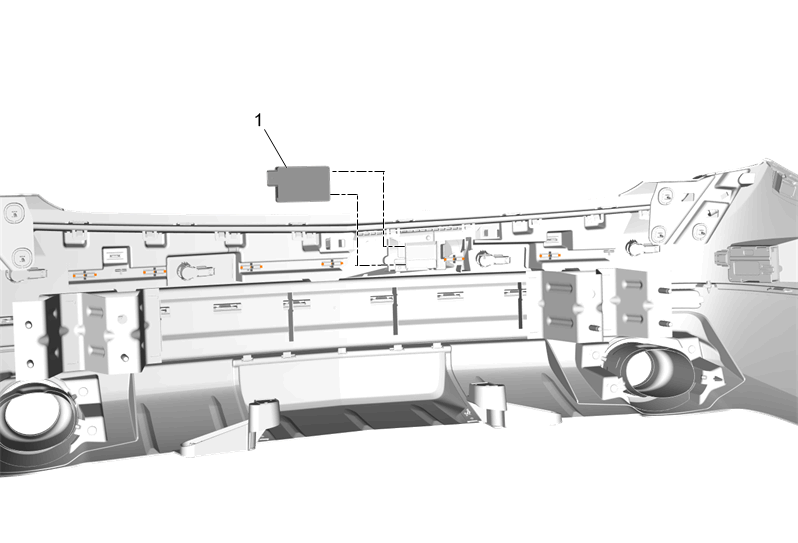

Fig 1: Short Range Radar Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Energy Absorber Replacement
1	Short Range Radar Sensor Procedure Disconnect the electrical connector. Release the tab retainer and slide the sensor through the bracket opening to remove. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Rear Bumper Energy Absorber Replacement

Short Range Radar Sensor

Procedure

Disconnect the electrical connector.
Release the tab retainer and slide the sensor through the bracket opening to remove.
Control Module References for programming and setup information, if required.
