3rd Row Seat Belt Guide Replacement

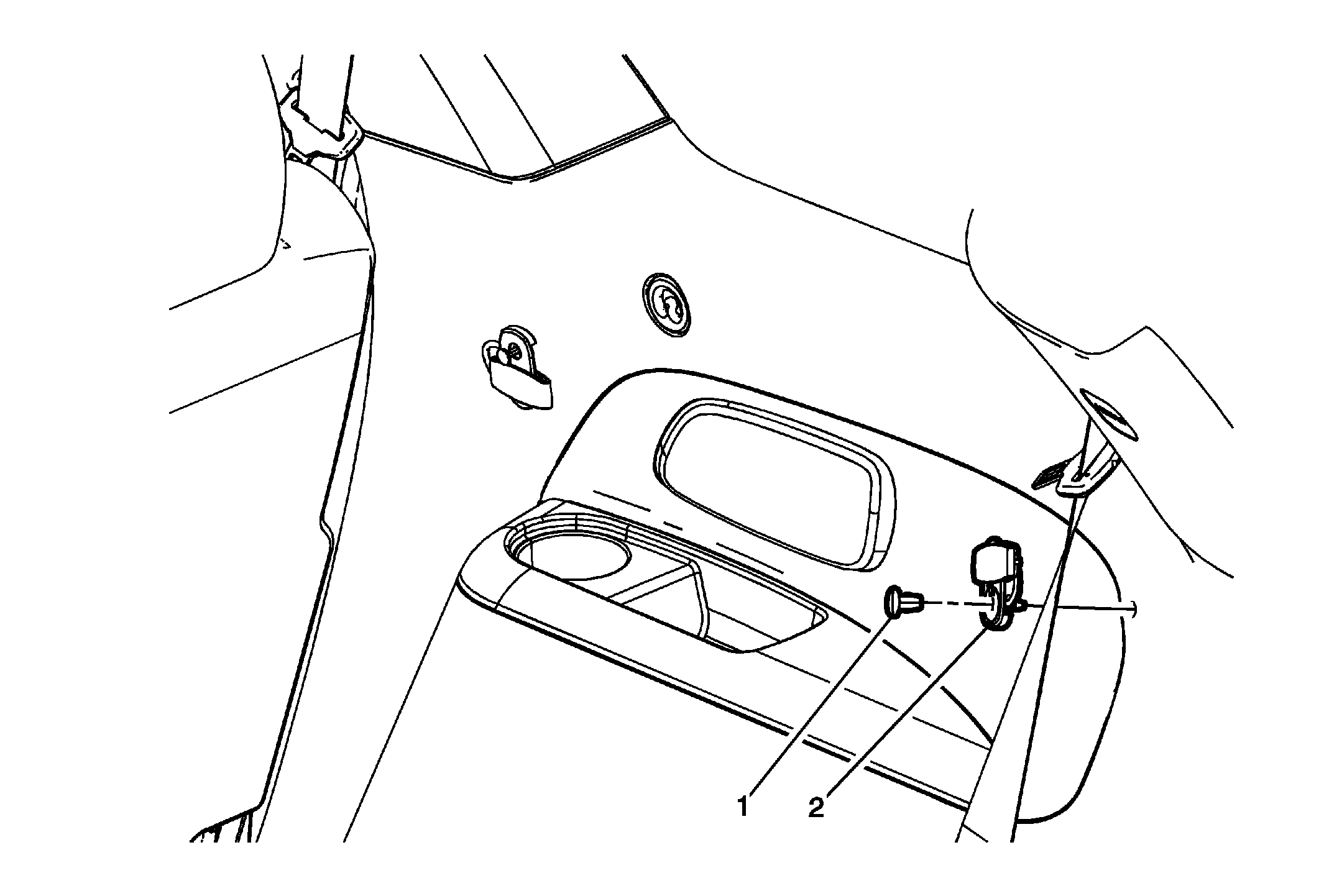

Fig 1: 3rd Row Seat Belt Guide
GM3295724Courtesy of GENERAL MOTORS COMPANY
3rd Row Seat Belt Guide Replacement

Callout Component Name
1 Rear Seat 3rd Row Belt Guide Retainer
2 Rear Seat 3rd Row Belt Guide
