Rear Seat Number 2 Belt Guide Replacement
Rear Seat Number 2 Belt Guide Replacement

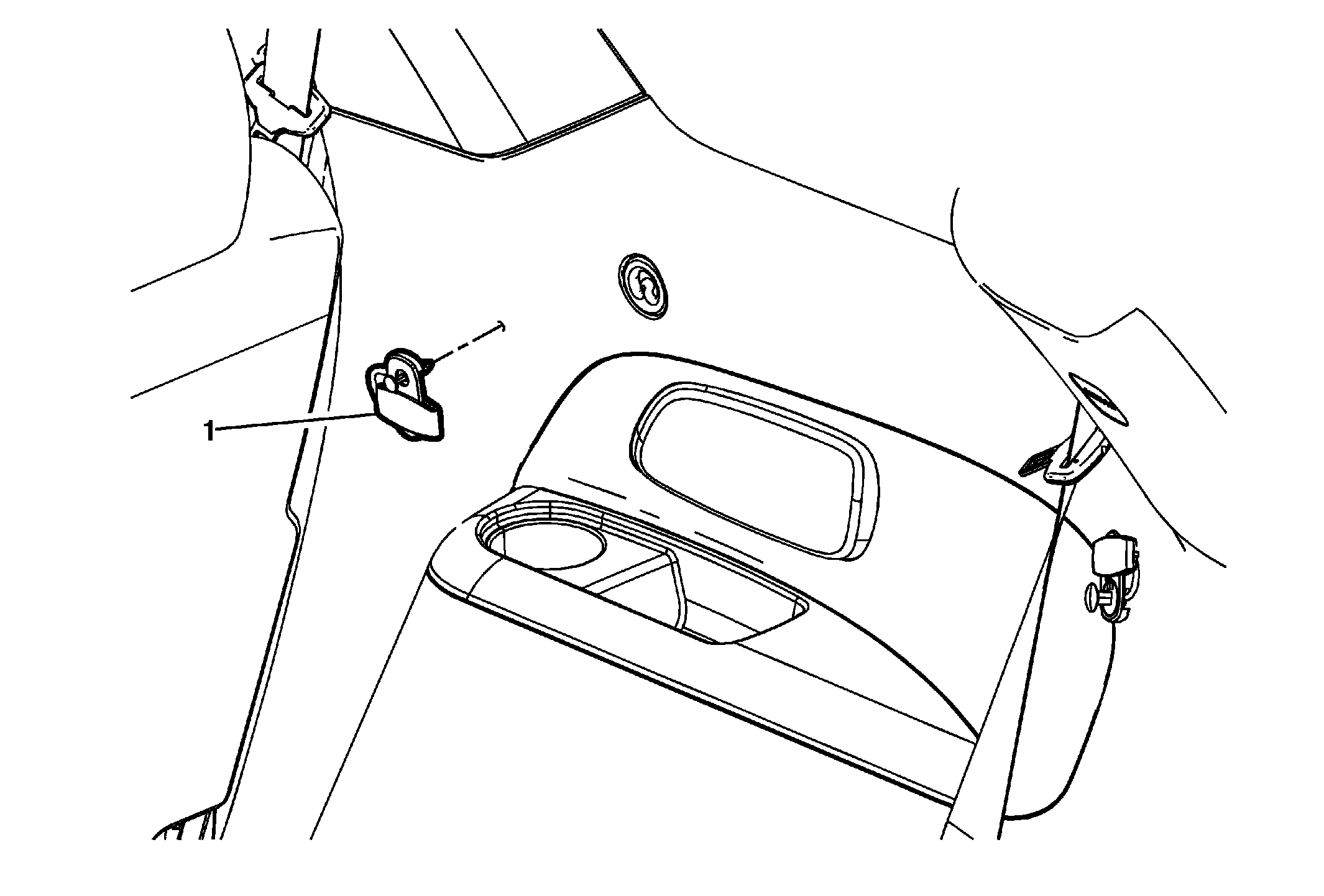

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Number 2 Belt Guide
WARNING:
Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Drill out the center of the belt guide retainer before removing the belt guide.
NOTE:
Place some tape on the quarter lower rear trim panel around the guide before drilling. |
