Charging System Wireless Module Replacement

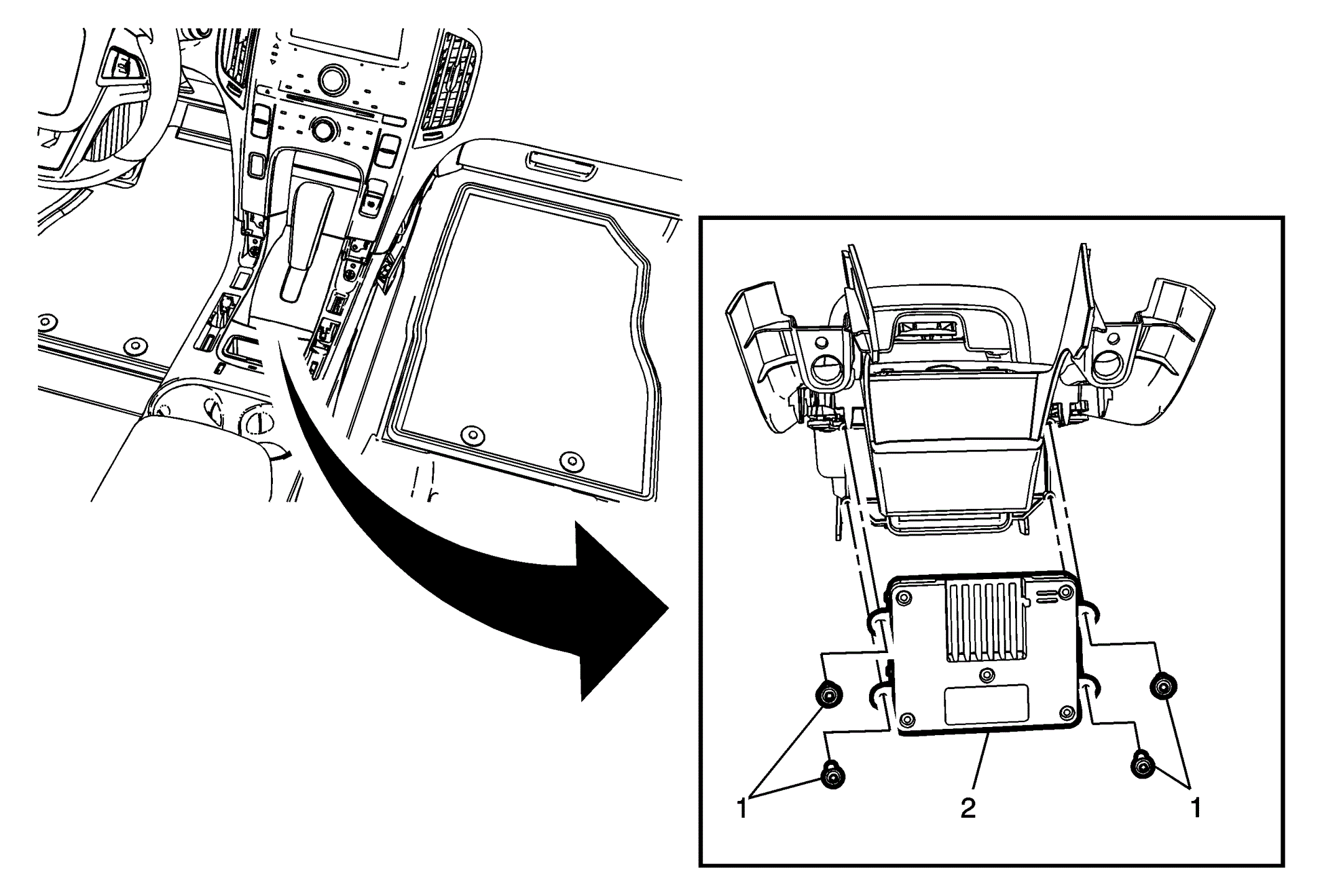

Fig 1: Charging System Wireless Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console side cover. Refer to Front Floor Console Side Cover Replacement .
1	Charging System Wireless Module Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Charging System Wireless Module Procedure Disconnect the electrical connector. Slide module down to remove.

Callout

Component Name

Preliminary Procedure
Remove the front floor console side cover. Refer to Front Floor Console Side Cover Replacement .

Charging System Wireless Module Fasteners (Qty: 4)

CAUTION:

Charging System Wireless Module

Procedure
