Charge Port Door Replacement

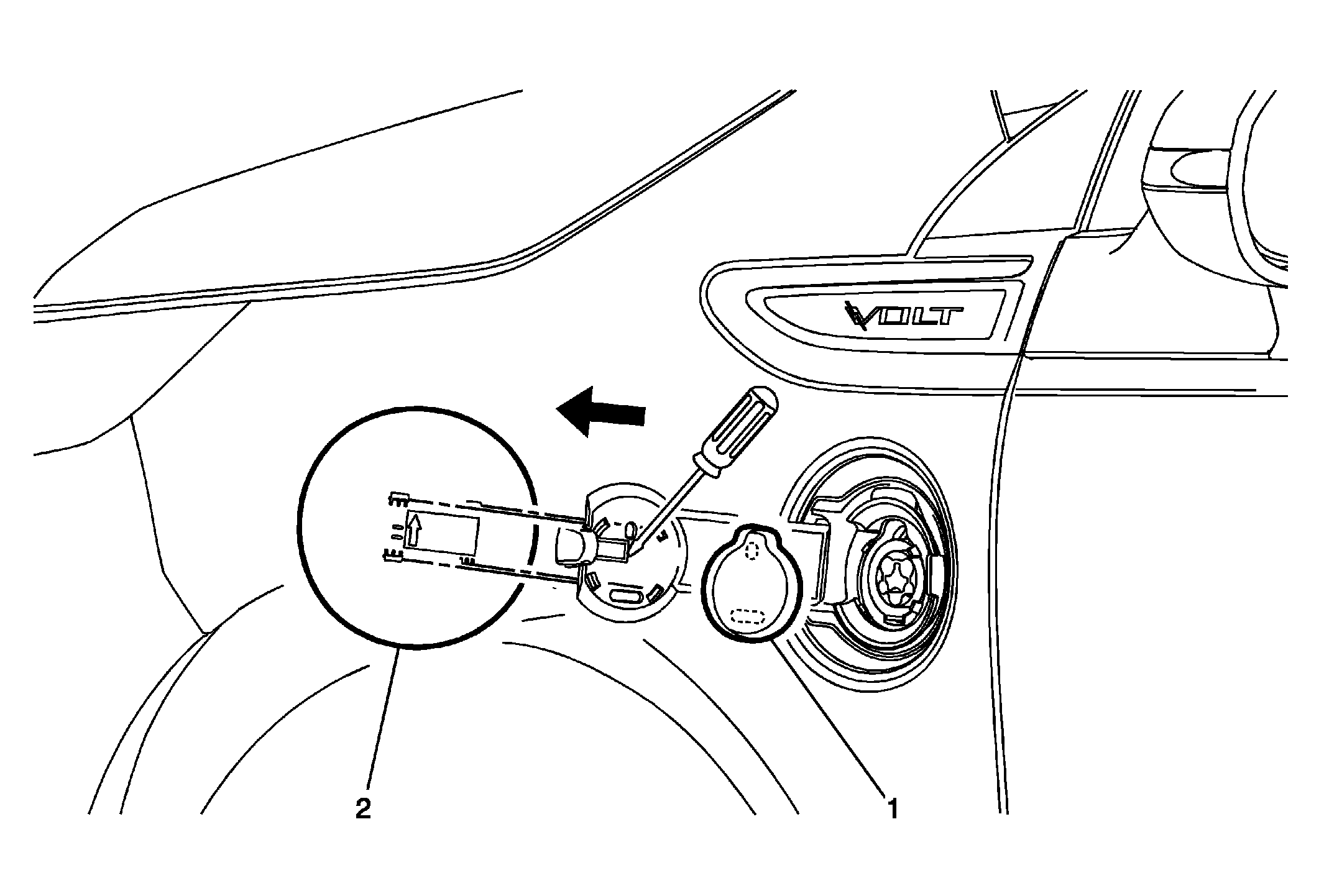

Fig 1: Charge Port Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Electrically release and open the charge port door. Disable the high voltage system. Refer to High Voltage Disabling .
1	Charge Port Door Seal Procedure Hold the charge port door with one hand and pull the seal from the inside of the door hinge in order to remove.
2	Charge Port Door Procedure Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly. Slide the door outward, away from the hinge and remove. Enable the high voltage system. Refer to High Voltage Enabling .

Callout

Component Name

Preliminary Procedures

Charge Port Door Seal
Procedure
Hold the charge port door with one hand and pull the seal from the inside of the door hinge in order to remove.

Charge Port Door

Procedure

Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly.
Slide the door outward, away from the hinge and remove.
Enable the high voltage system. Refer to High Voltage Enabling .
