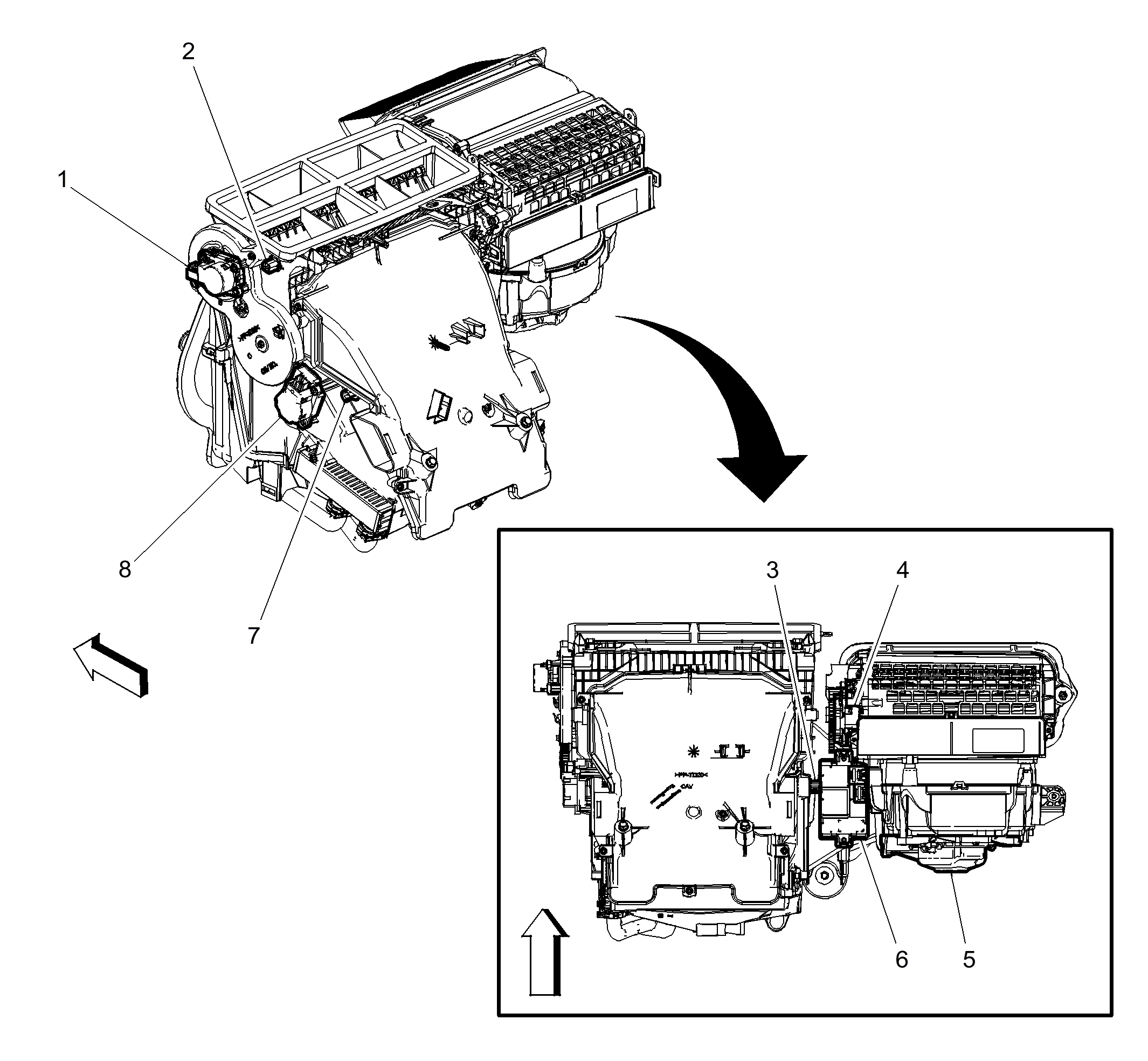

Instrument Panel - HVAC Components
Instrument Panel - HVAC Components
| Items |
|---|
| 1: M37 Mode Door Actuator M37 Mode Door Actuator |
| 2: B7F Air Temperature Sensor - Duct Upper B7F Air Temperature Sensor - Duct Upper |
| 3: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 4: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Motor |
| 5: M8 Blower Motor M8 Blower Motor |
| 6: K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 7: B7B Air Temperature Sensor - Duct Lower B7B Air Temperature Sensor - Duct Lower |
| 8: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
