Air Cleaner Assembly Replacement

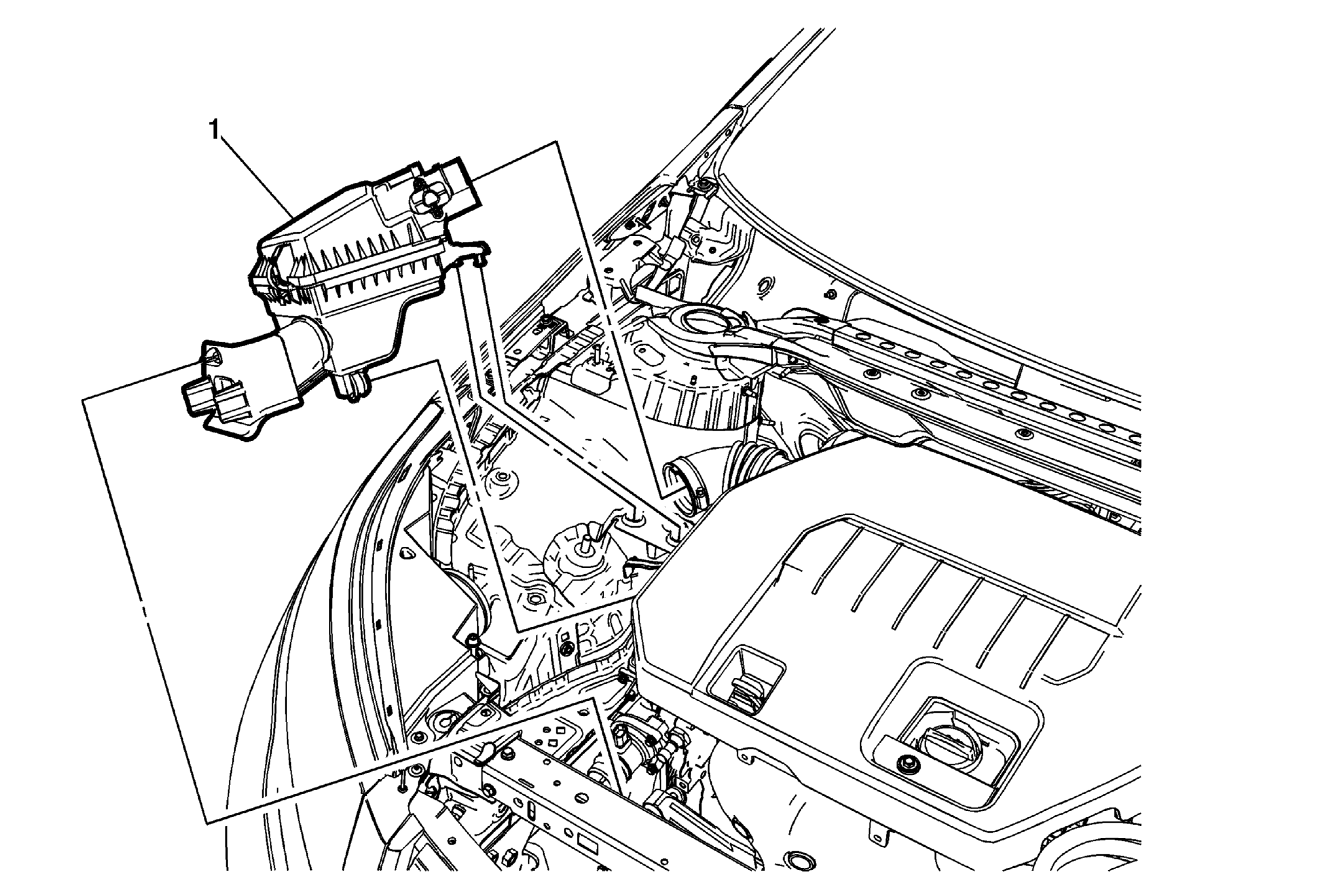

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the secondary air injection pump air cleaner hose. Refer to Secondary Air Injection Pump Air Cleaner Hose Replacement . Disconnect the air cleaner resonator duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Disconnect the electrical connectors. Transfer parts as necessary. NOTE: Ensure lower flap of Air Inlet Tube is positioned between Wiring Harness and CRFM, the Flap should not overlap harness. Squeezing the air inlet tube (squeezing the lower flap upward) during install, the flap will clear the harness and fall into the correct location when the upper retainer is secured.

Callout

Component Name

Preliminary Procedures

Remove the secondary air injection pump air cleaner hose. Refer to Secondary Air Injection Pump Air Cleaner Hose Replacement .
Disconnect the air cleaner resonator duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Air Cleaner Assembly

Procedure

Disconnect the electrical connectors.
Transfer parts as necessary.

NOTE:

Ensure lower flap of Air Inlet Tube is positioned between Wiring Harness and CRFM, the Flap should not overlap harness. Squeezing the air inlet tube (squeezing the lower flap upward) during install, the flap will clear the harness and fall into the correct location when the upper retainer is secured.
