Throttle Body Assembly Replacement

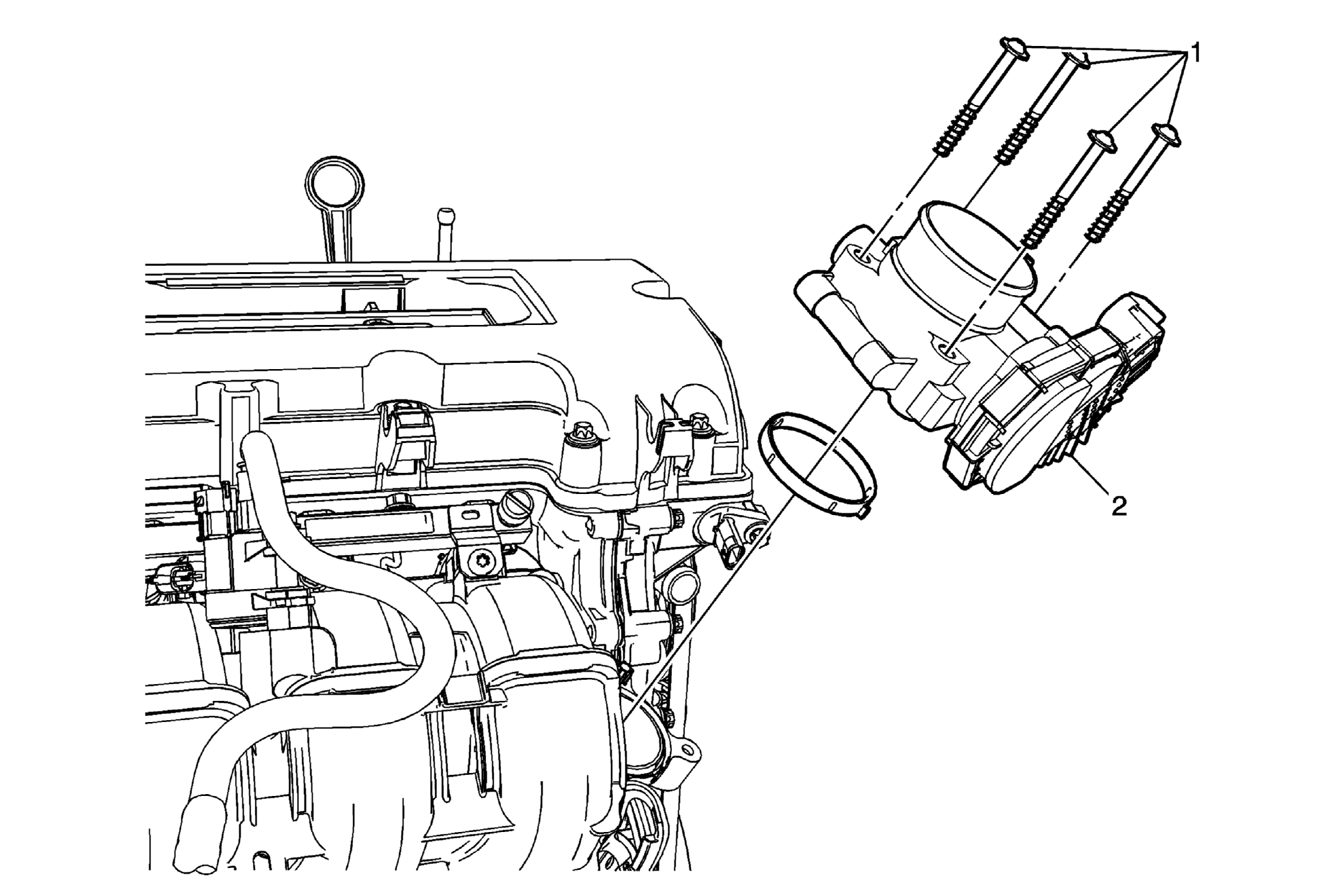

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Throttle Body Assembly Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Throttle Body Assembly Procedure Use a NEW seal. Disconnect the electrical connector. Perform the throttle learn procedure. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Throttle Body Assembly Fastener (Qty: 4)

CAUTION:

Tighten
8 N.m (71 lb in)

Throttle Body Assembly

Procedure
