Installation Procedure

    Fig 1: Fuel Pipe Shield
    GM3962920Courtesy of GENERAL MOTORS COMPANY
  1. Fuel Pipe Shield (1) Install

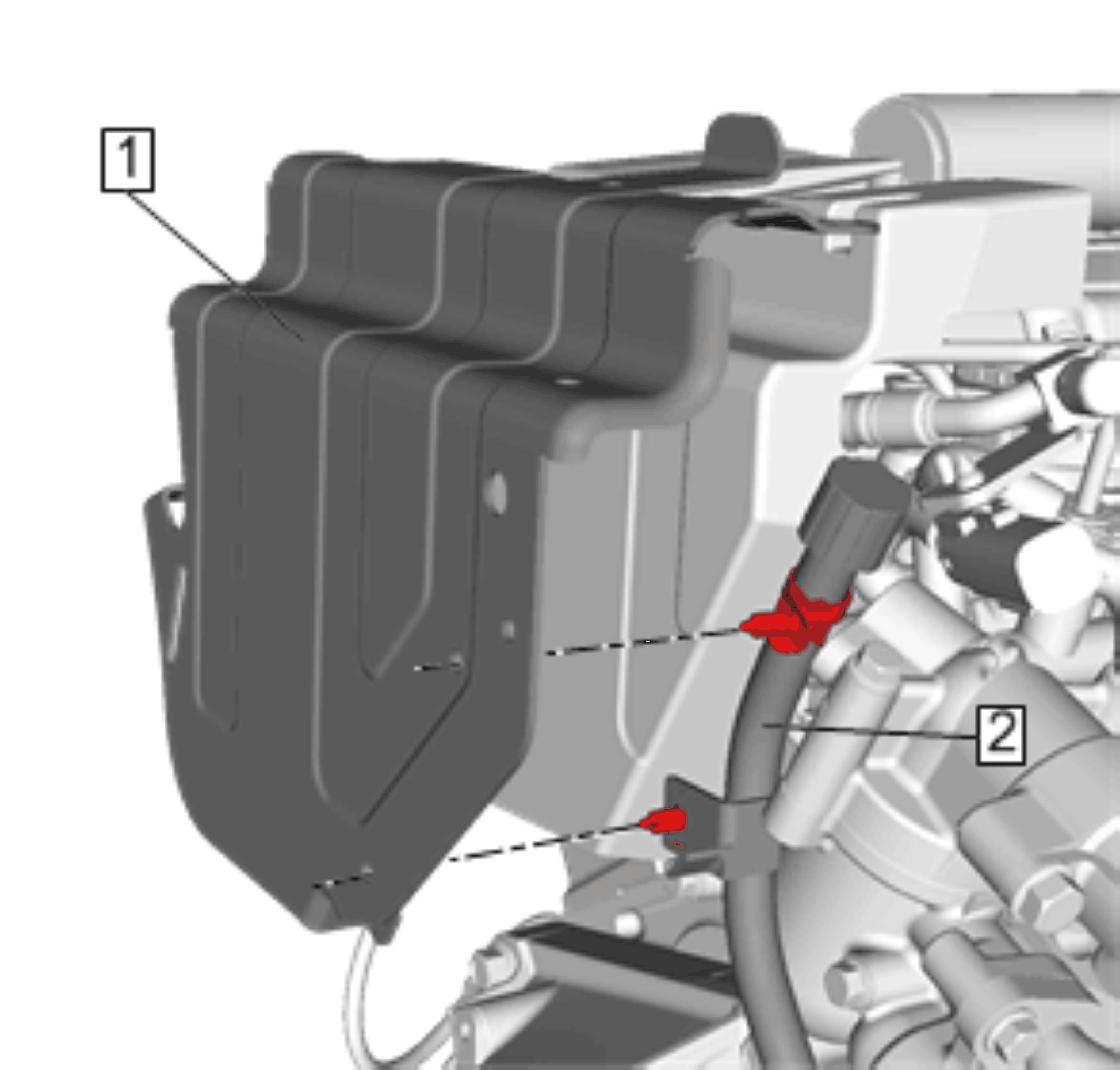

    2. Fig 2: Transmission Vent Hose
    GM3962828Courtesy of GENERAL MOTORS COMPANY
  2. Transmission Vent Hose (1) Fuel Pipe Shield - Install.

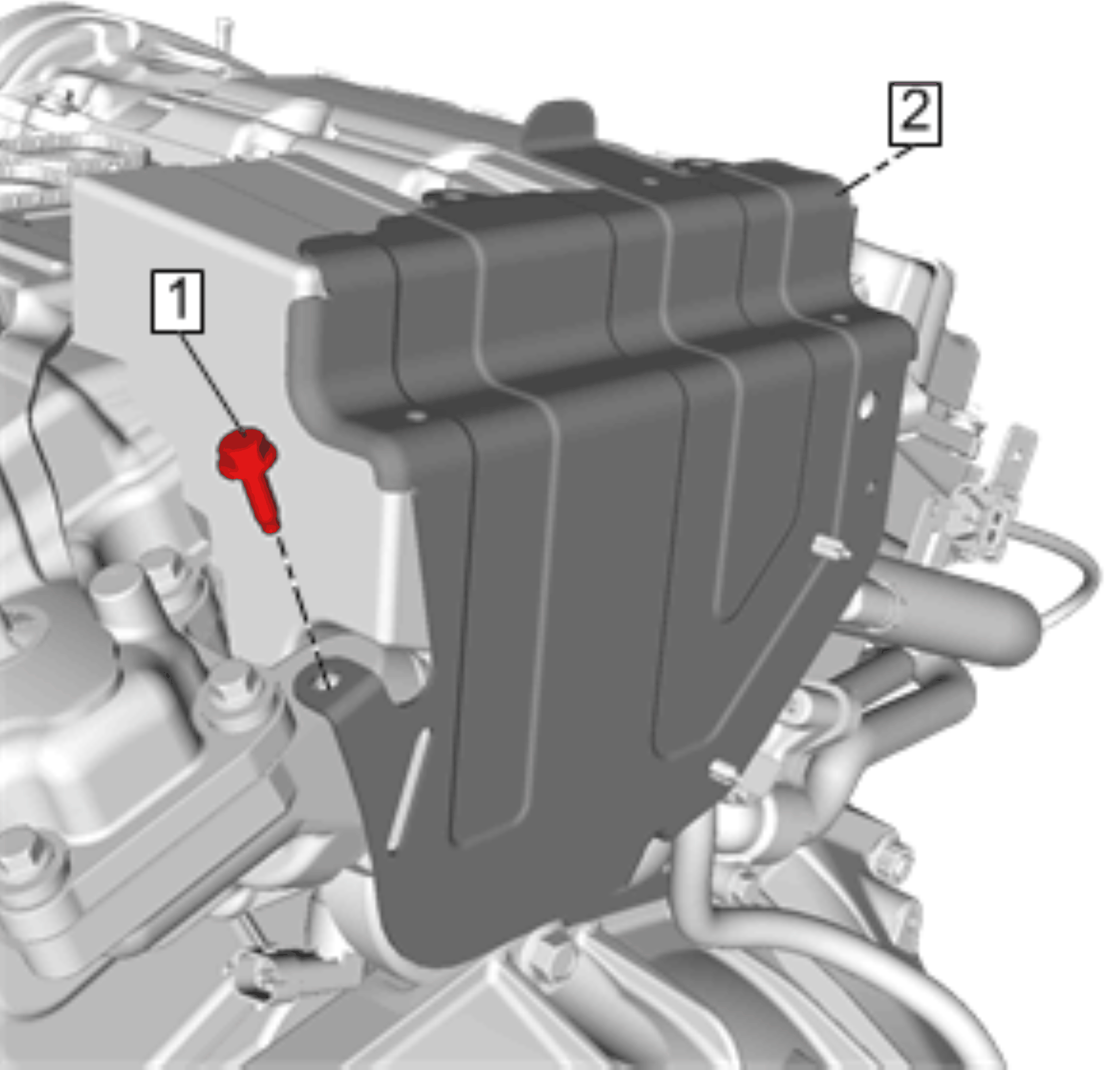

    3. Fig 3: Fuel Pipe Shield Bolt
    GM3962802Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Fuel Pipe Shield Bolt (1) Install and tighten. 10 N.m (89 lb in)
    4. Fig 4: Power Brake Booster Vacuum Hose
    GM3962793Courtesy of GENERAL MOTORS COMPANY
  4. Power Brake Booster Vacuum Hose (1) Fuel Pipe Shield - Install.

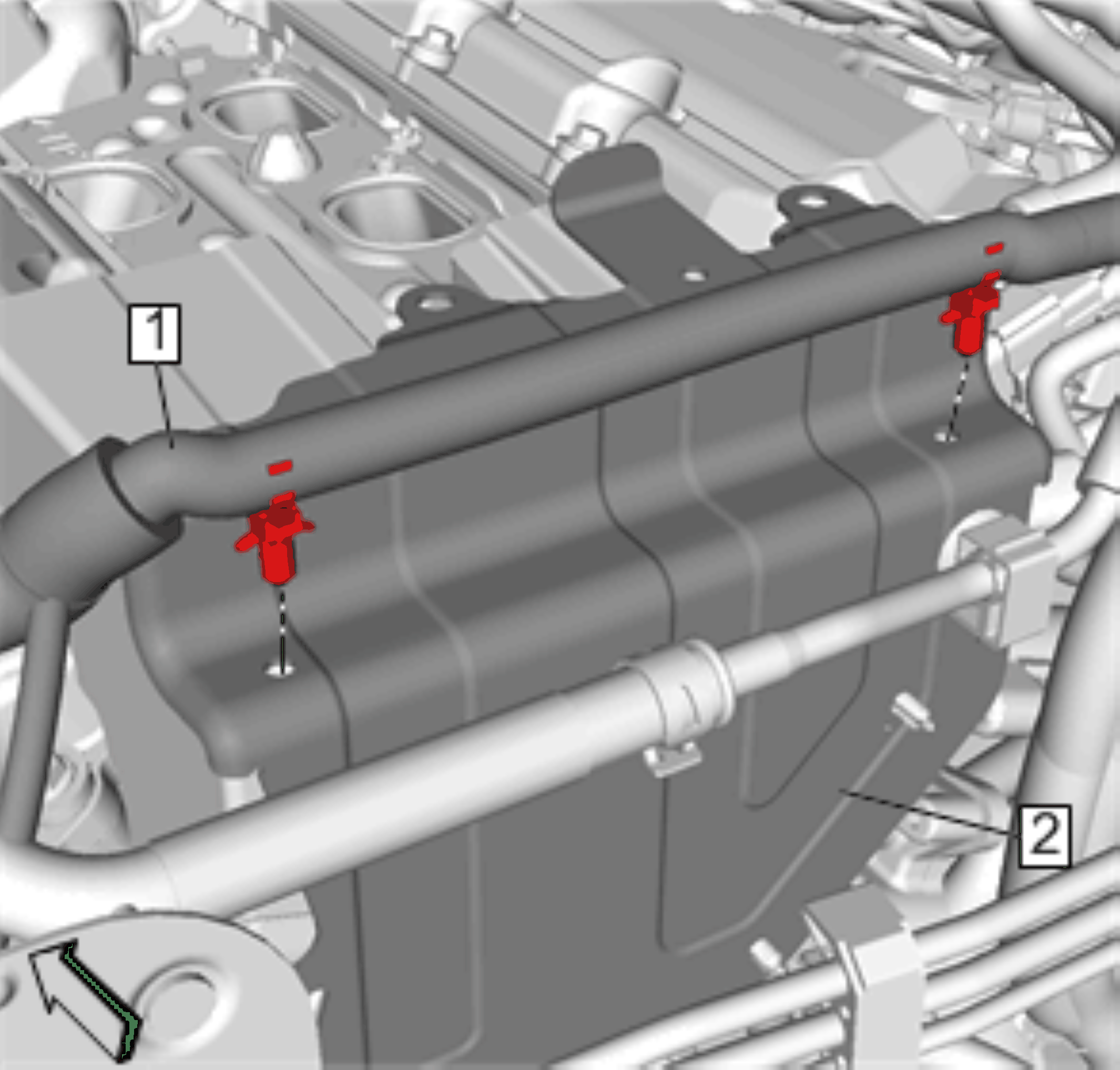

    5. Fig 5: Engine Wiring Harness And Fuel Pipe Shield
    GM3962416Courtesy of GENERAL MOTORS COMPANY
  5. Engine Wiring Harness (1) Fuel Pipe Shield-Install.
  6. Intake Manifold Replacement »Install.
