Mid Speed GMLAN (UPH)

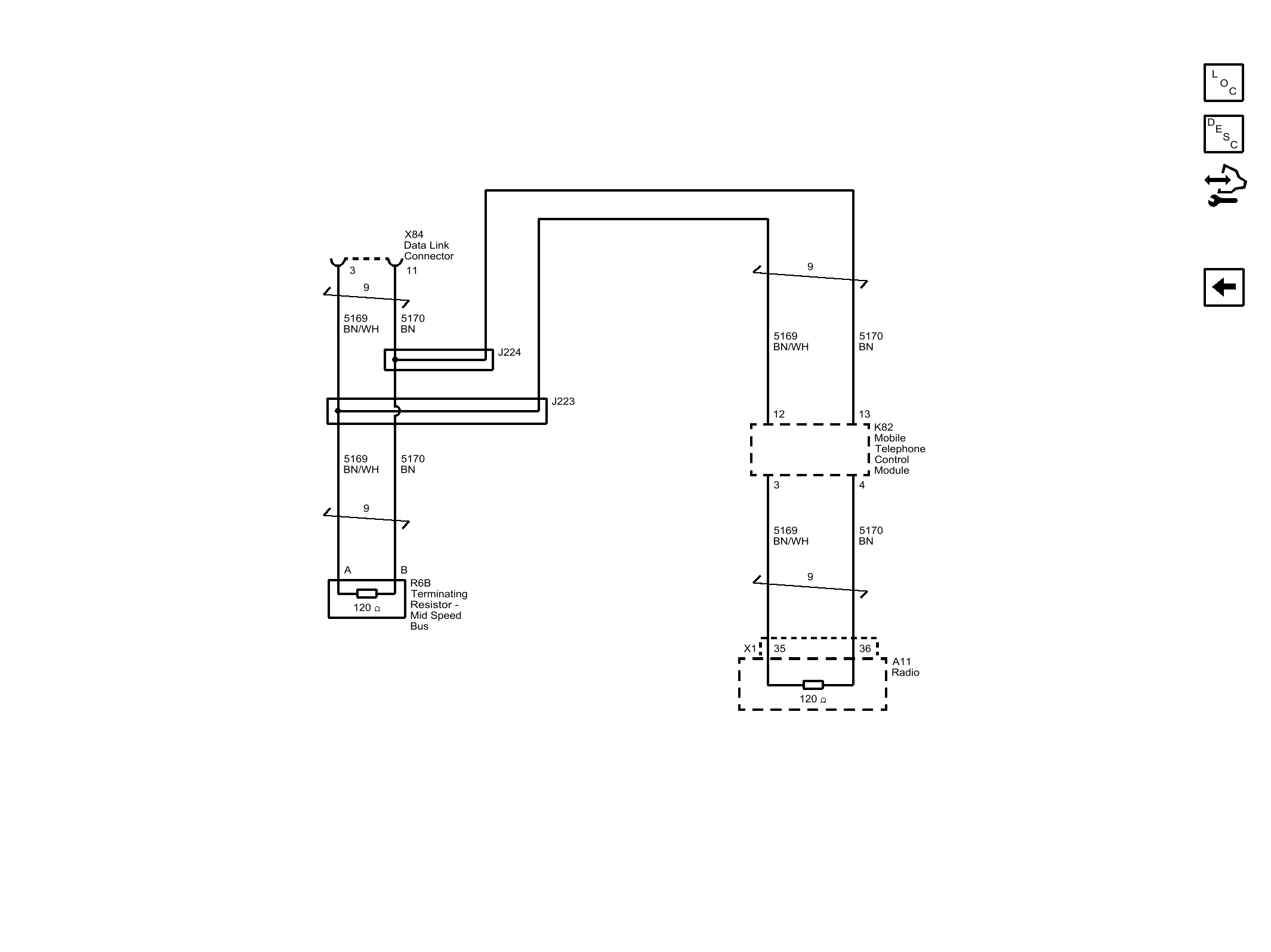

Fig 1: Mid Speed GMLAN (UPH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
