Shift Lock Control Wiring Schematics
>>
MYB, MYC or MYD
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
MYB, MYC or MYD

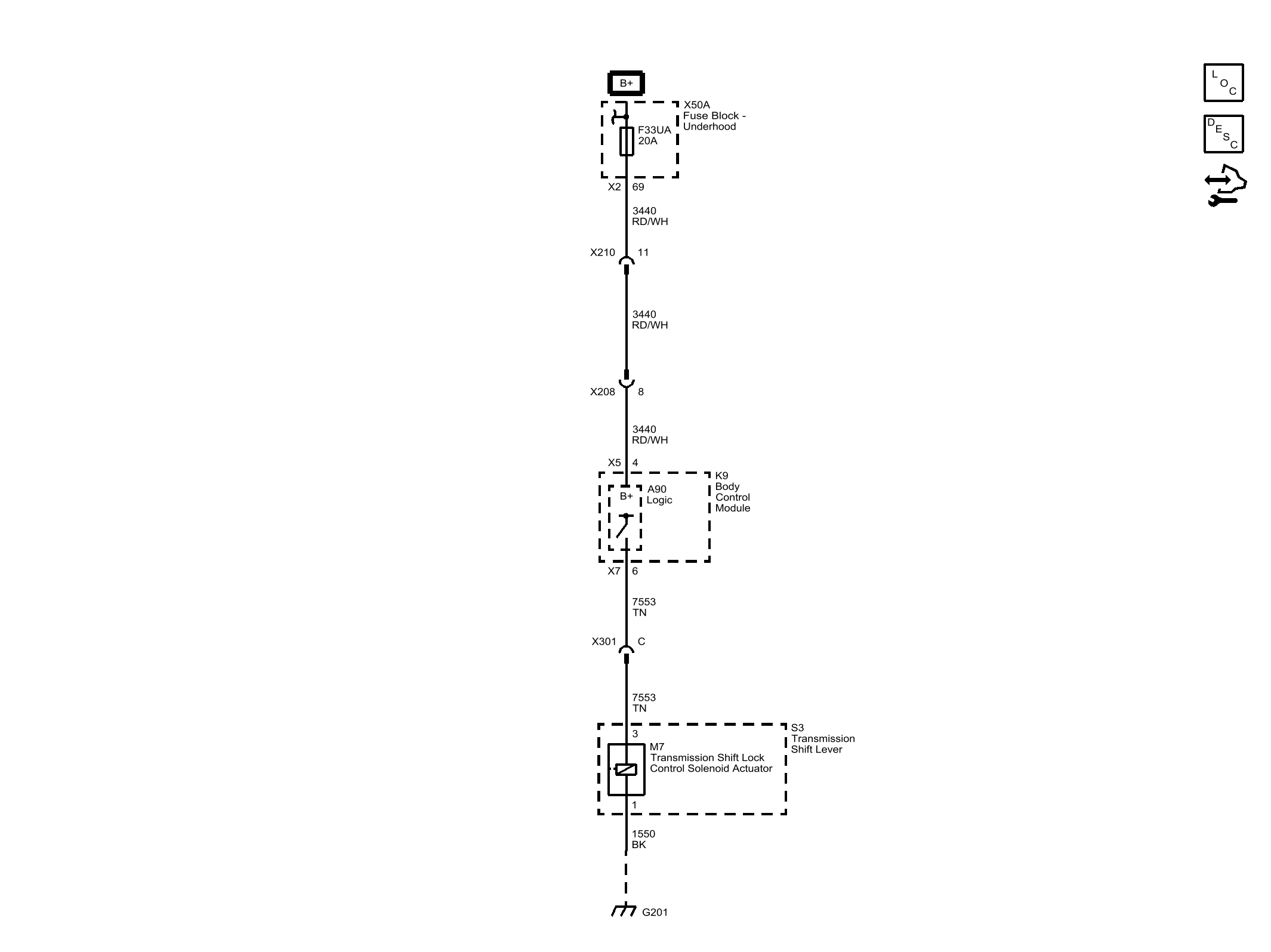

Fig 1: MYB, MYC or MYD
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
