Remote Control Door Lock Receiver Replacement

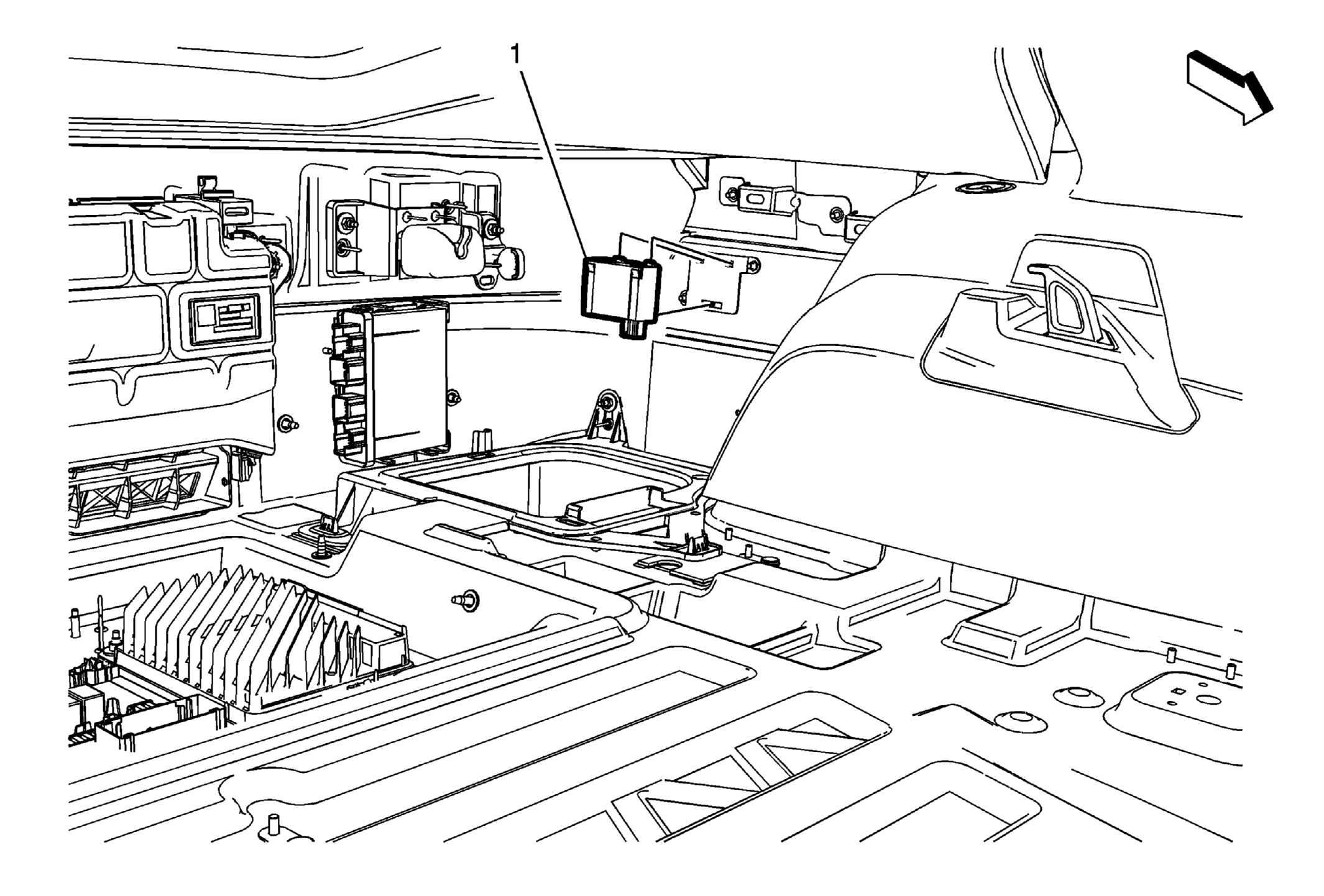

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter lower rear trim panel - left side. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Use the appropriate tool to release the tabs from the bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the quarter lower rear trim panel - left side. Refer to Quarter Lower Rear Trim Panel Replacement .

Remote Control Door Lock Receiver

Procedure
