Body Control Module Bracket Replacement

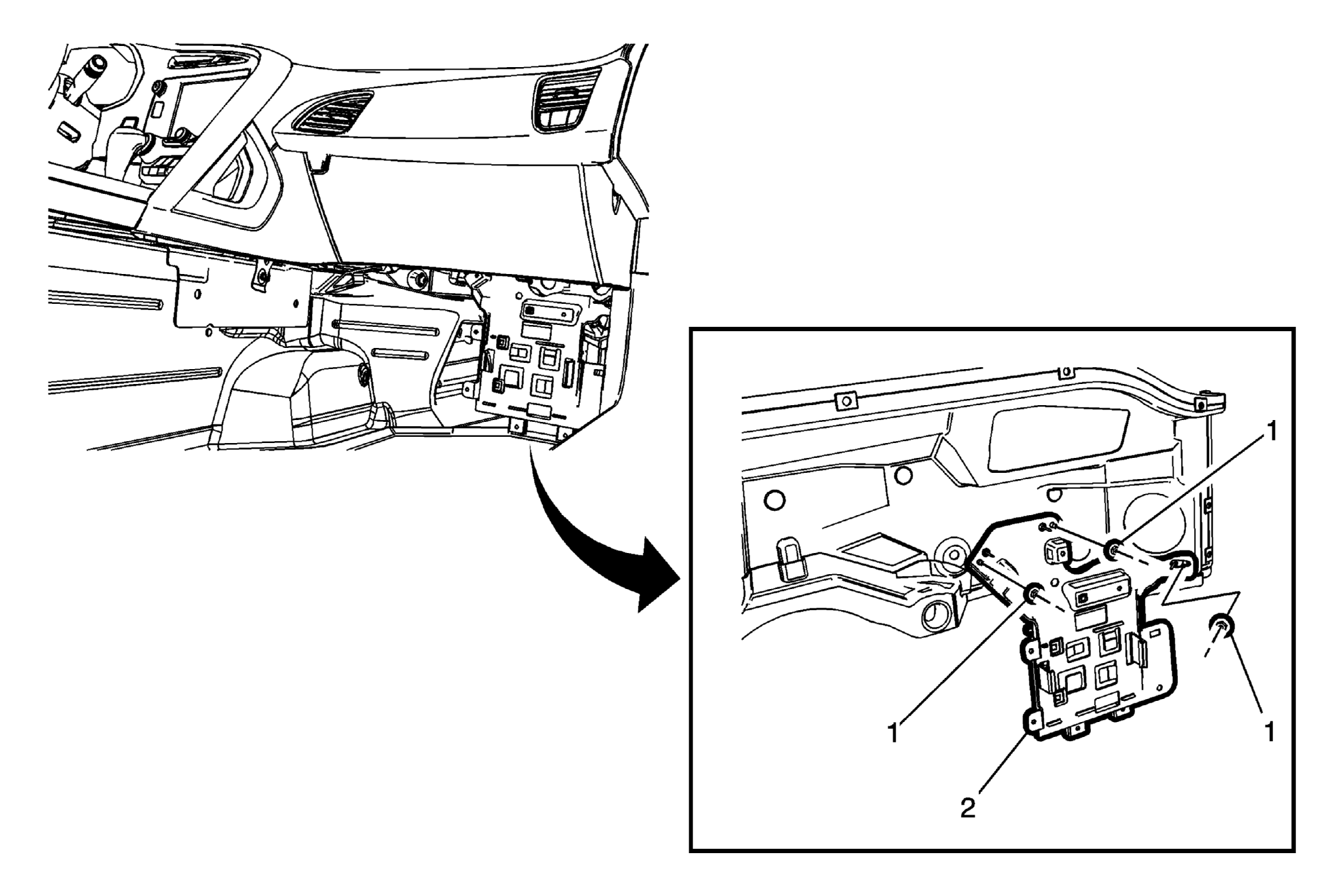

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the vehicle performance data bracket. Refer to Vehicle Performance Data Recorder Bracket Replacement . Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1	Body Control Module Bracket Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Control Module Bracket Procedure Disconnect the electrical connector of the module. Transfer components, as necessary.

Callout

Component Name

Preliminary Procedures

Remove the vehicle performance data bracket. Refer to Vehicle Performance Data Recorder Bracket Replacement .
Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .

Body Control Module Bracket Nuts (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Body Control Module Bracket

Procedure
