Body Control Module Replacement

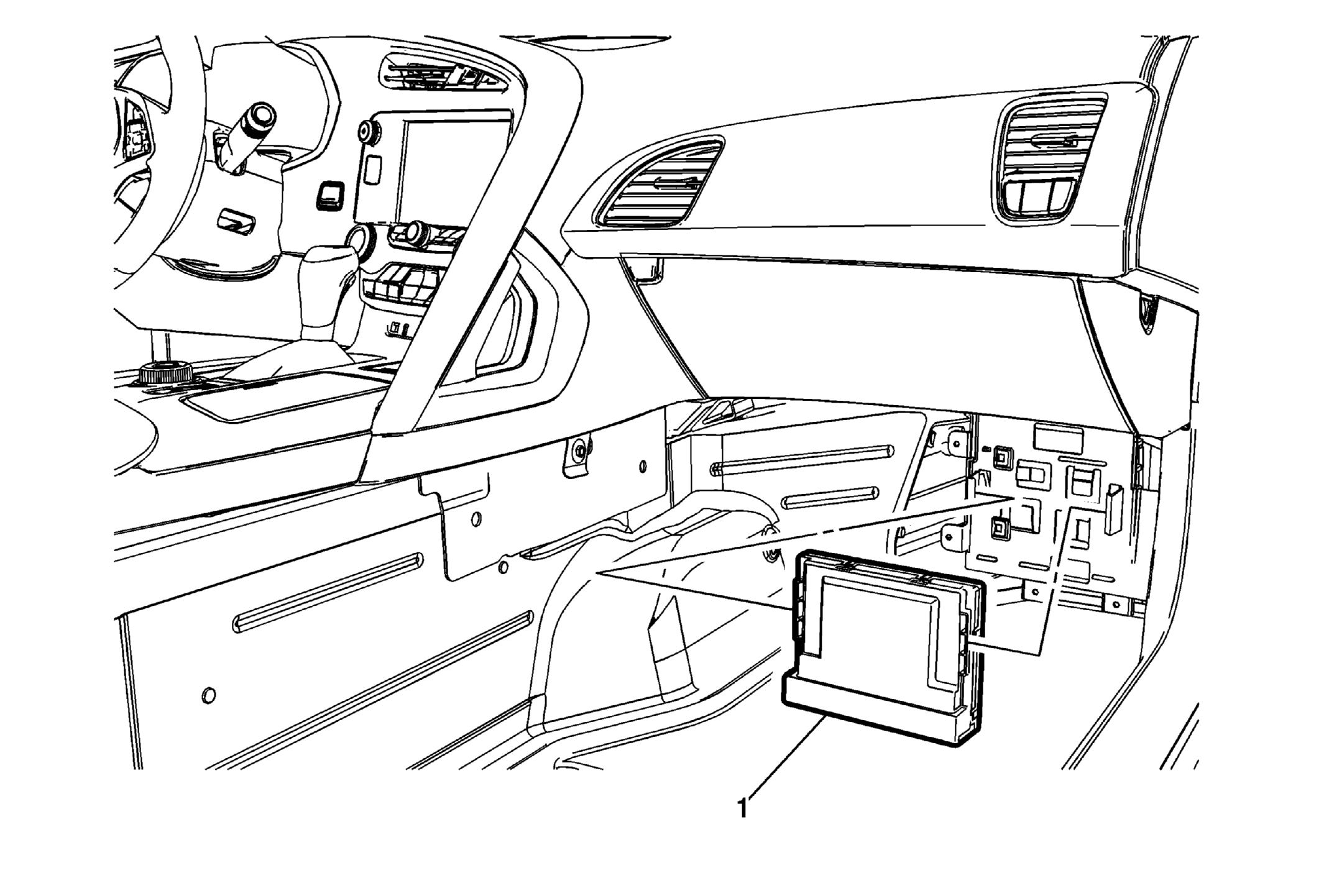

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the vehicle performance data recorder bracket to gain access to the module. Refer to Vehicle Performance Data Recorder Bracket Replacement .
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Reprogram the module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the vehicle performance data recorder bracket to gain access to the module. Refer to Vehicle Performance Data Recorder Bracket Replacement .

Body Control Module

Procedure
