Rear Toe Adjustment

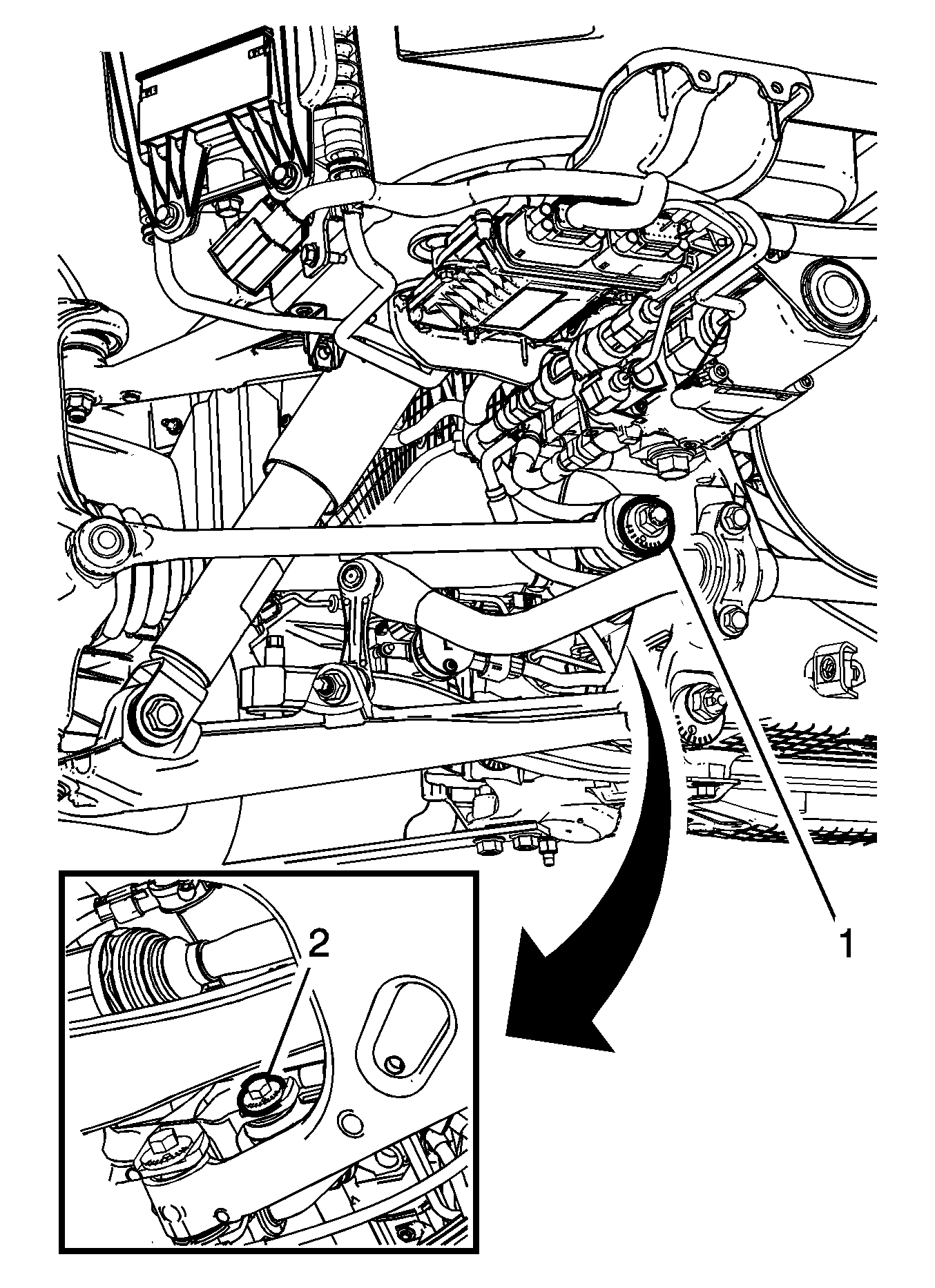

    Fig 1: Rear Suspension Adjust Link Cam Nut
    GM3290959Courtesy of GENERAL MOTORS COMPANY
  1. Loosen the rear suspension adjust link cam nut (1).
  2. Rotate the inner cam bolt (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the rear suspension adjustment link cam nut to 70 N.m (52 lb ft).
  4. Check the toe setting after tightening.
  5. Adjust the toe setting if necessary.
