GMLAN Communication Enable Wiring Schematics

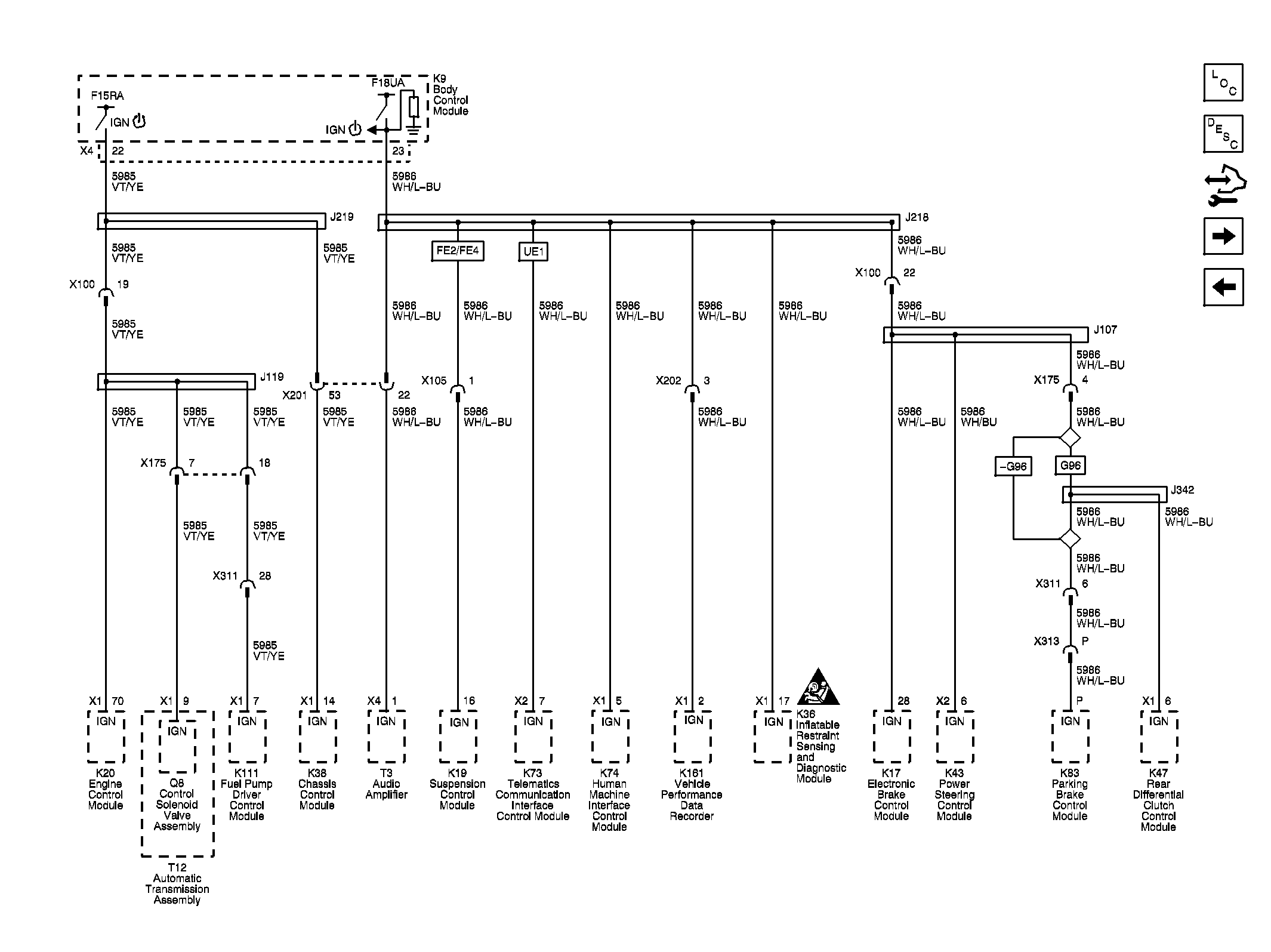

Fig 1: GMLAN Communication Enable Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
