Chassis Expansion Bus Wiring Schematics

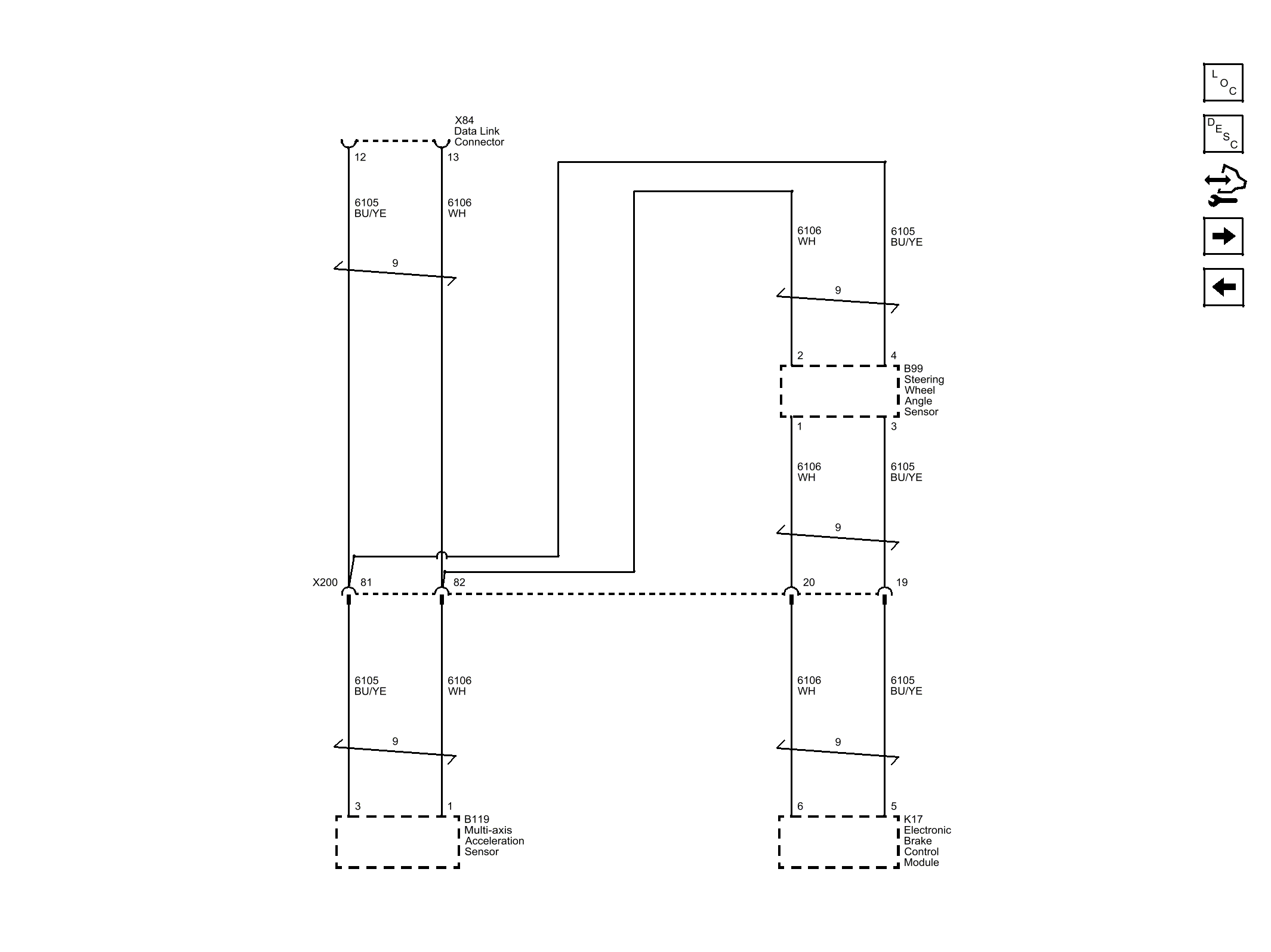

Fig 1: Chassis Expansion Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
