MH8 Wiring Schematics

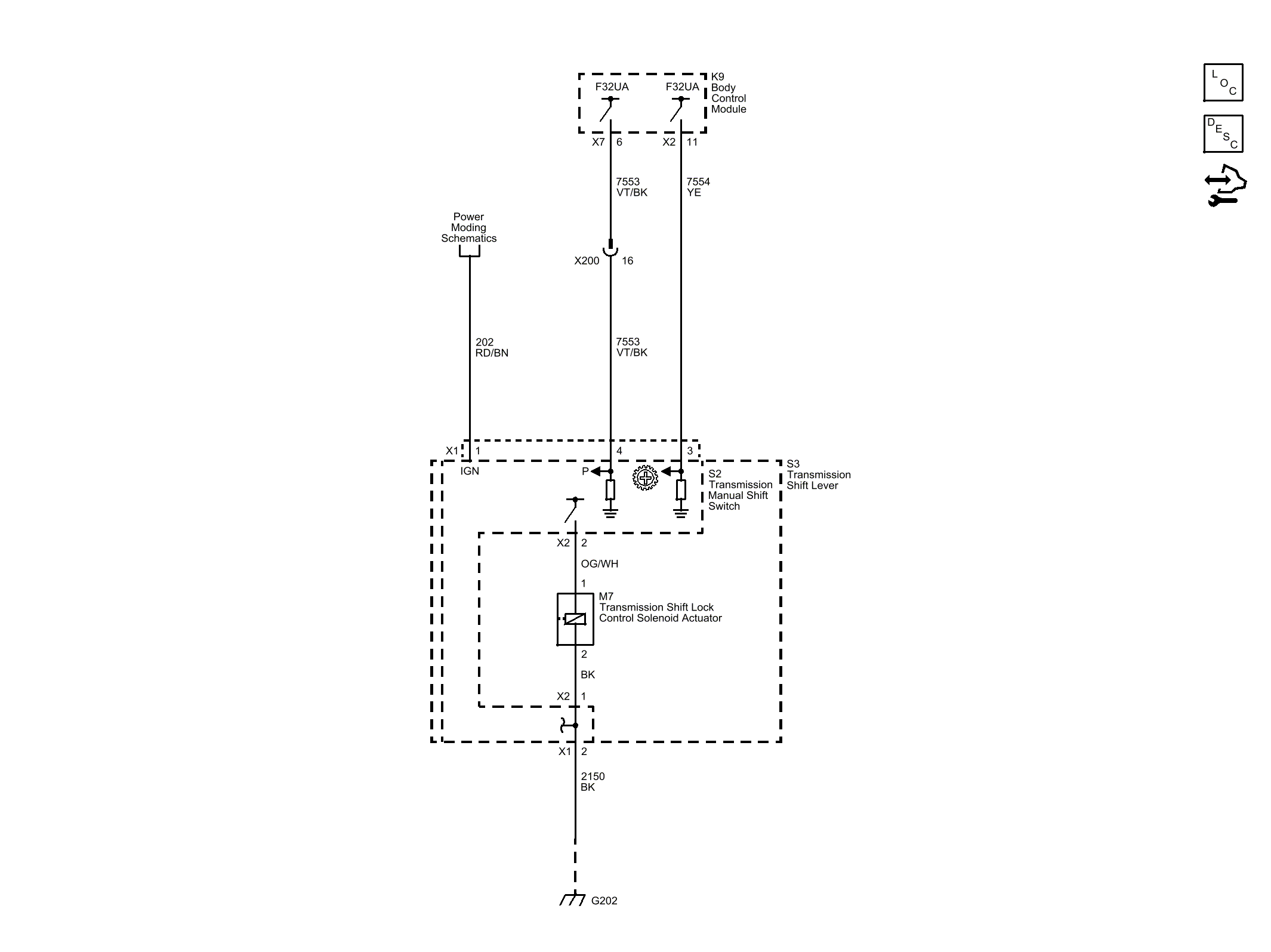

Fig 1: MH8 Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
