Installation Procedure

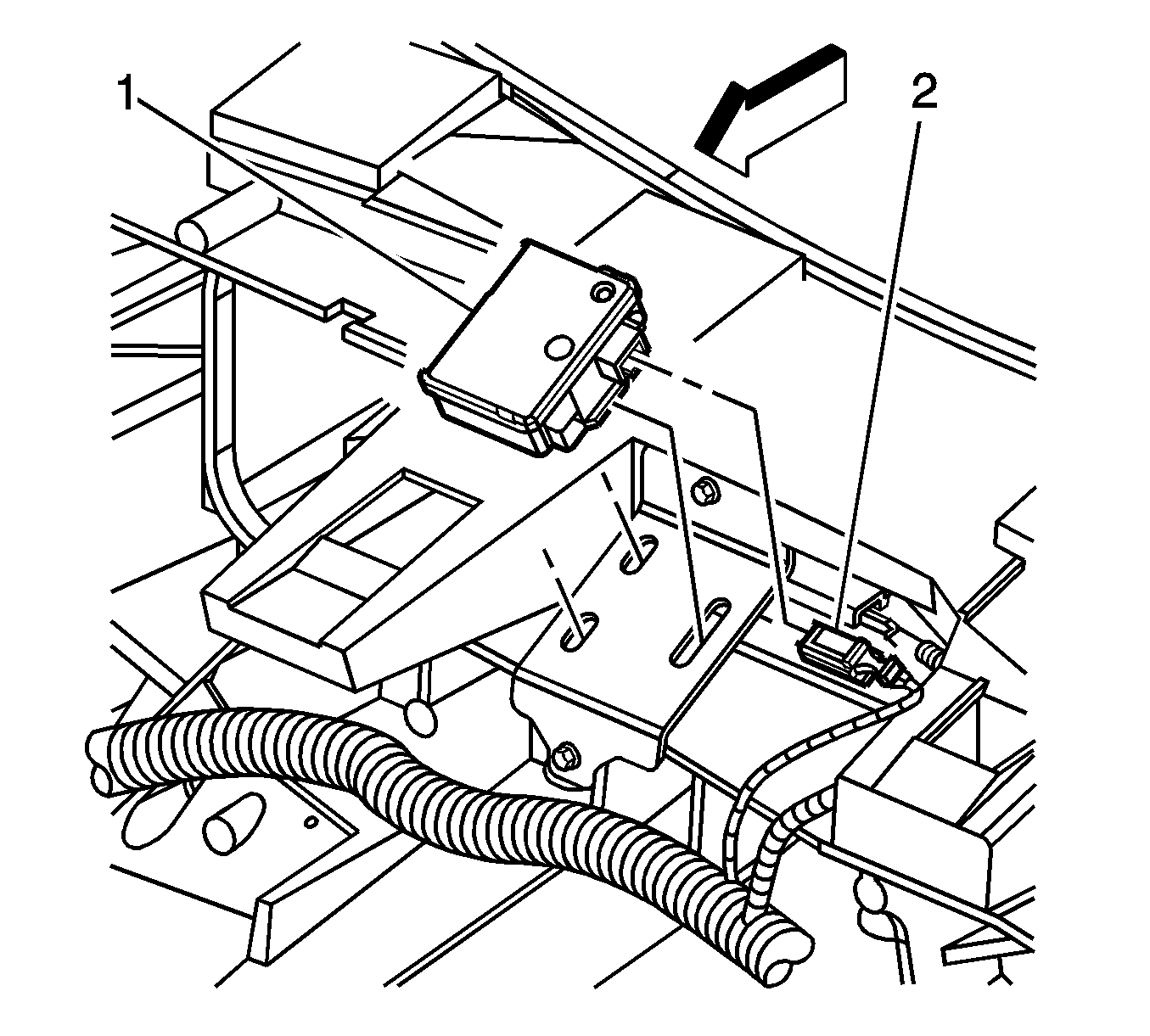

    Fig 1: Electrical Connector & Door Lock Receiver
    GM871215Courtesy of GENERAL MOTORS COMPANY
  1. Perform the following to install the door lock receiver (1) to the door lock receiver bracket.

    Slide the tab on door lock receiver (1) into the door lock receiver bracket and snap into place to secure.

  2. Connect the electrical connector (1) to the door lock receiver (2).
  3. Install the I/P trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .
  4. Refer to Control Module References for programming and setup information.
