Removal Procedure

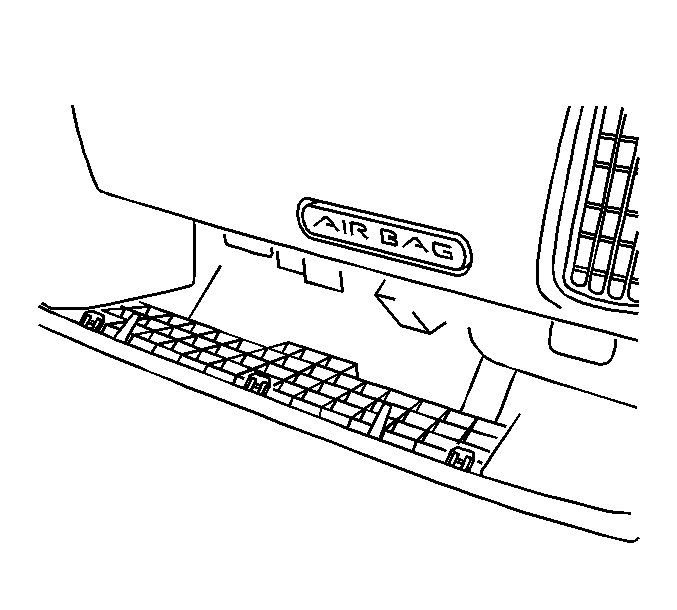

Fig 1: Identifying Right Side Knee Bolster Trim Panel
GM853308Courtesy of GENERAL MOTORS COMPANY
  1. Remove the right side knee bolster trim panel. Refer to Passenger Knee Bolster Replacement .

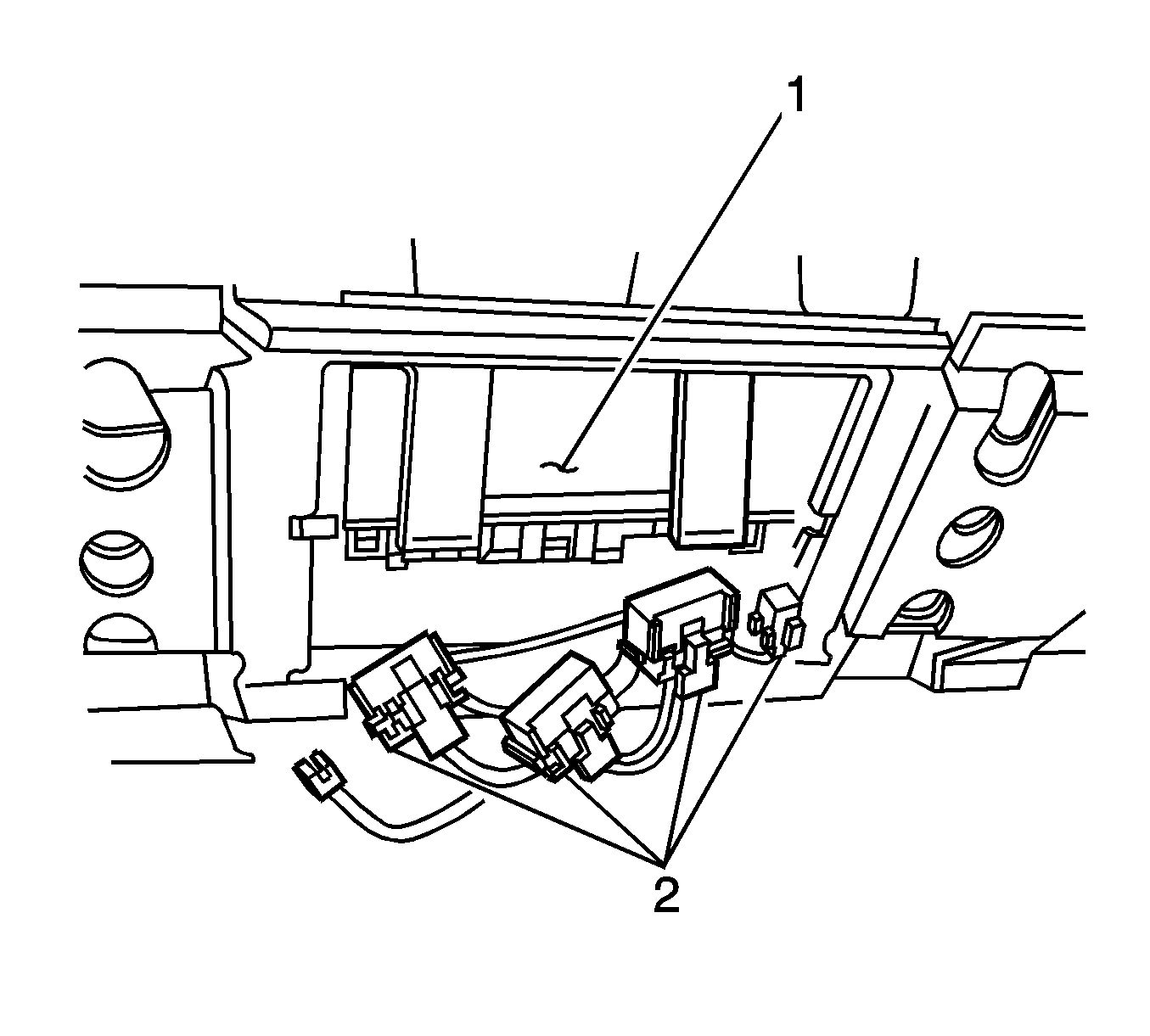

    Fig 2: Electrical Connectors And Body Control Module
    GM923655Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connectors (2) from the body control module (BCM) (1).

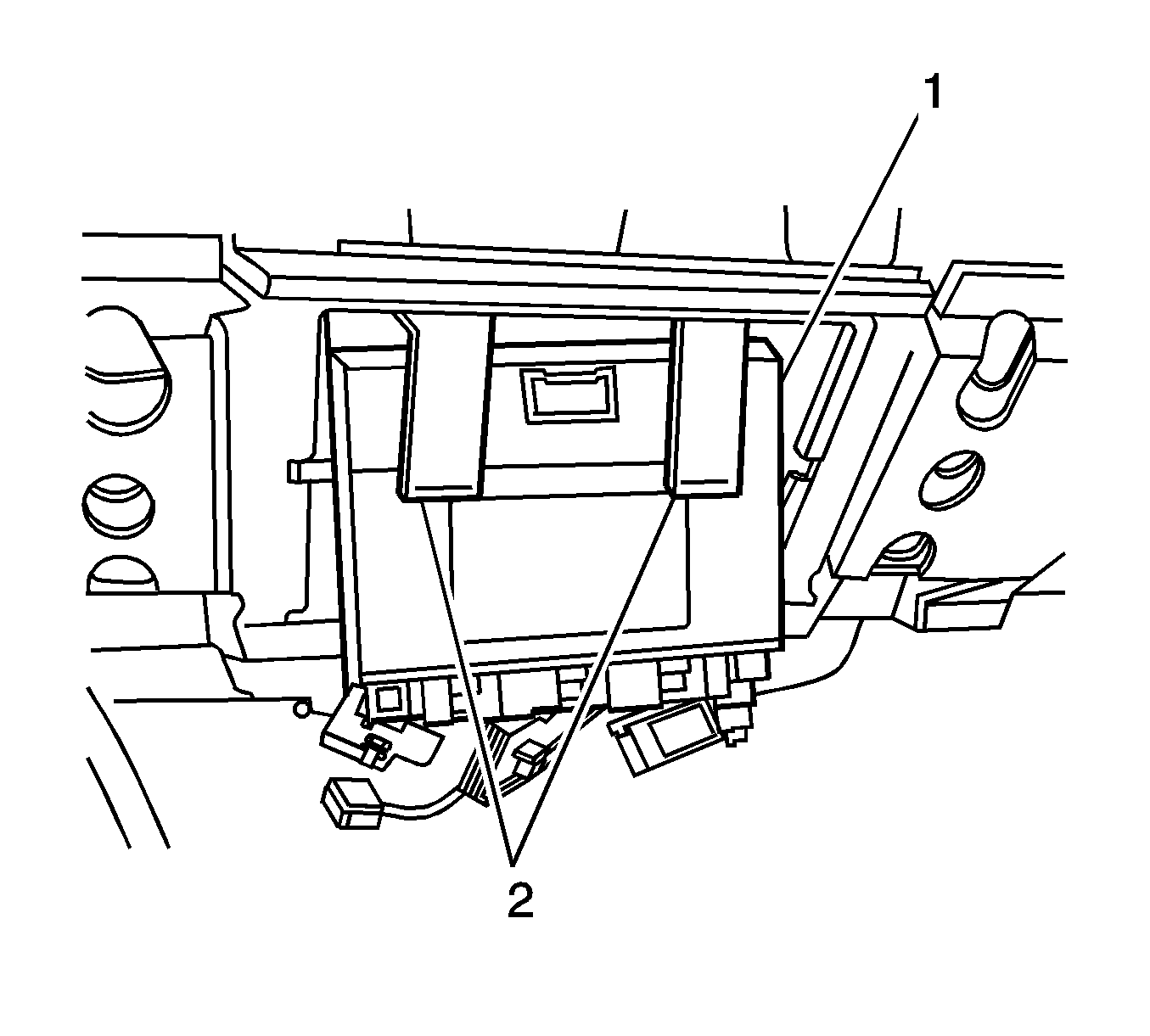

    Fig 3: Tabs And BCM
    GM923653Courtesy of GENERAL MOTORS COMPANY
  3. Release the tabs (2) retaining the BCM (1) to the bracket.
  4. Remove the BCM (1) from the vehicle.
