Accessory Wakeup

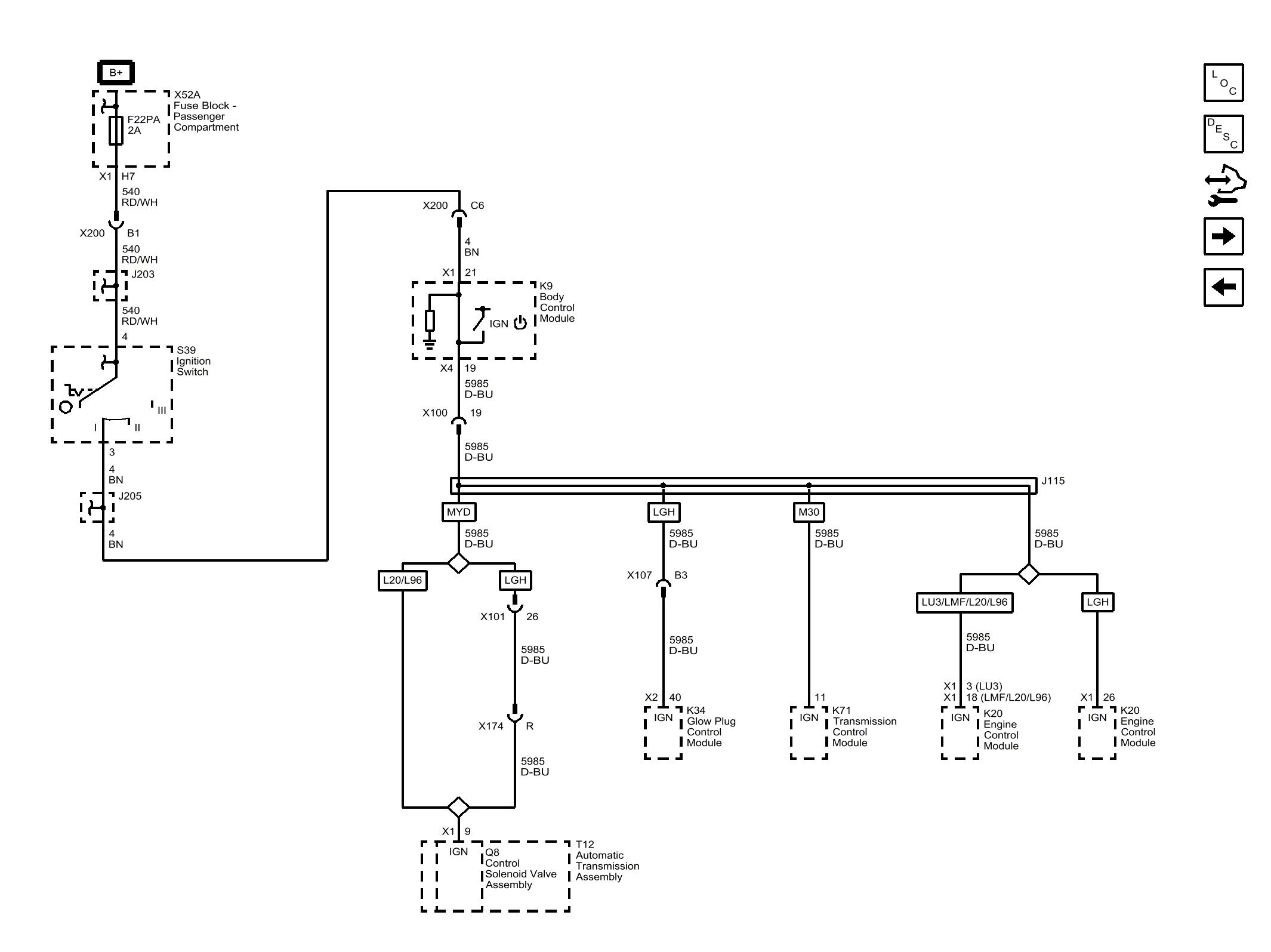

Fig 1: Accessory Wakeup Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
