High Speed GMLAN (Diesel)

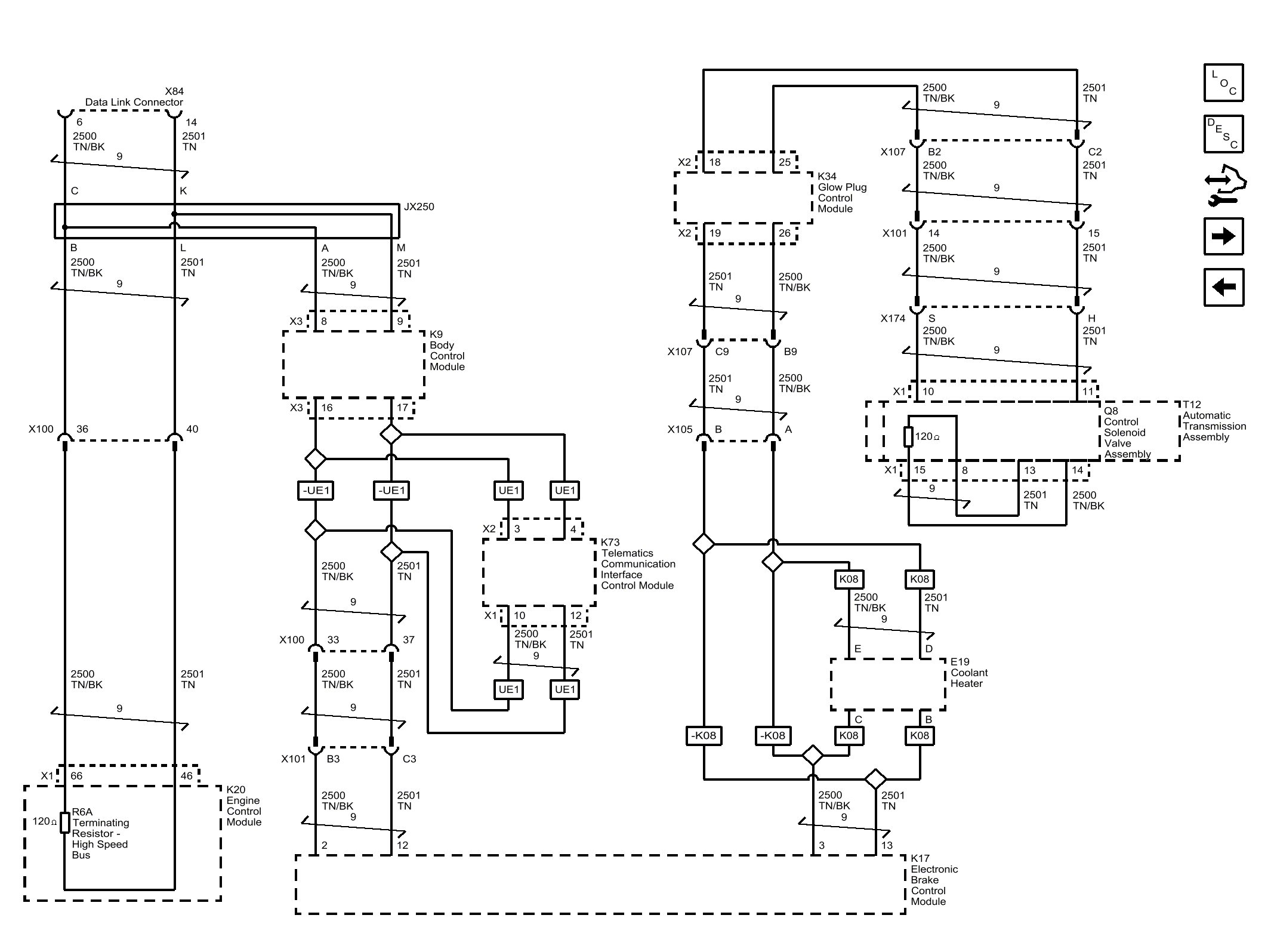

Fig 1: High Speed GMLAN (Diesel) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
