Forward Range Radar Module Replacement

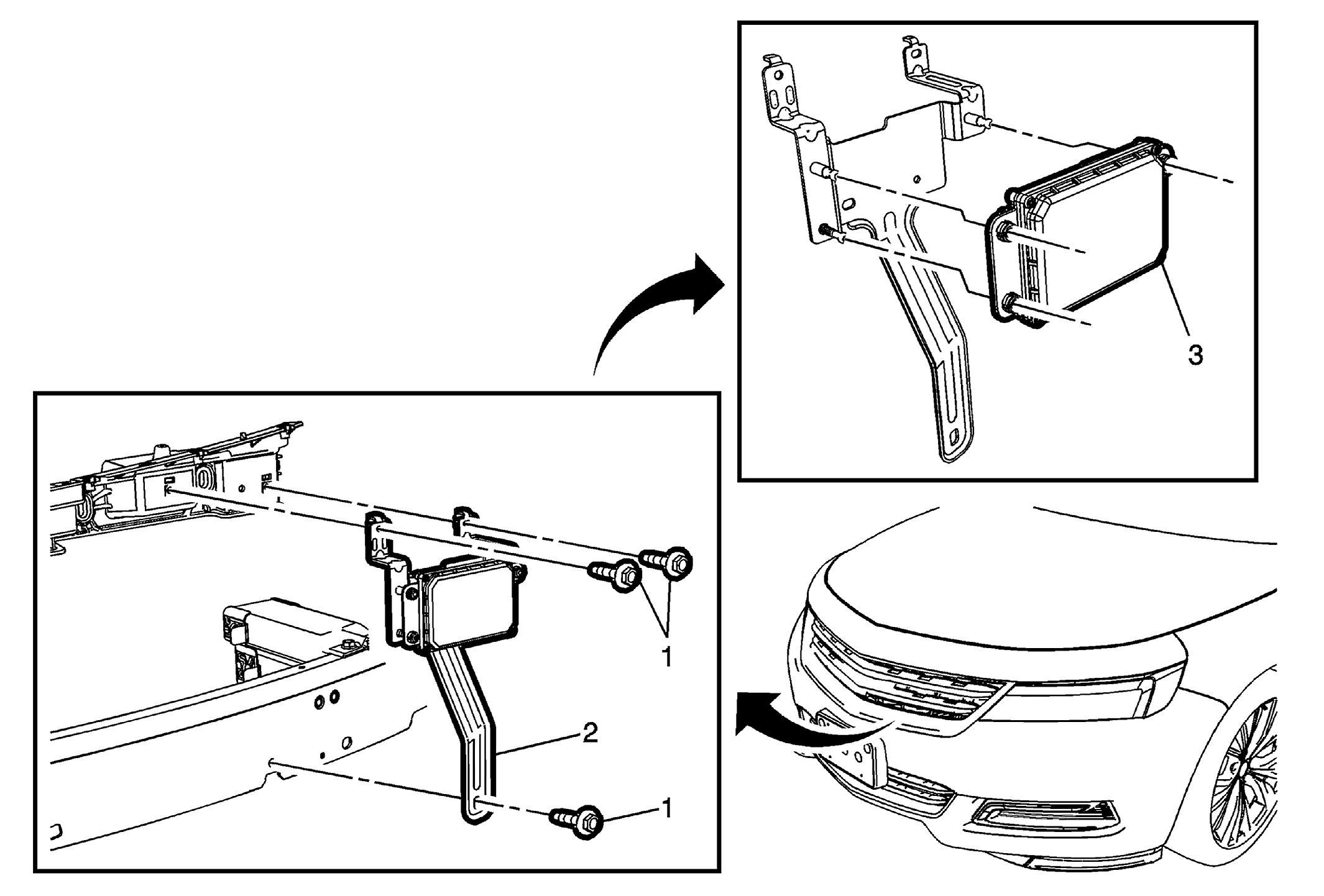

Fig 1: Forward Range Radar Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Forward Range Radar Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Module Bracket
3	Forward Range Radar Module Procedure Disconnect the electrical connector. Remove the module beginning with the lower ball socket. Carefully lift the module away from bracket using the appropriate tool. For programming and set up, refer to Control Module References .
