Rear Object Alarm Control Module Replacement

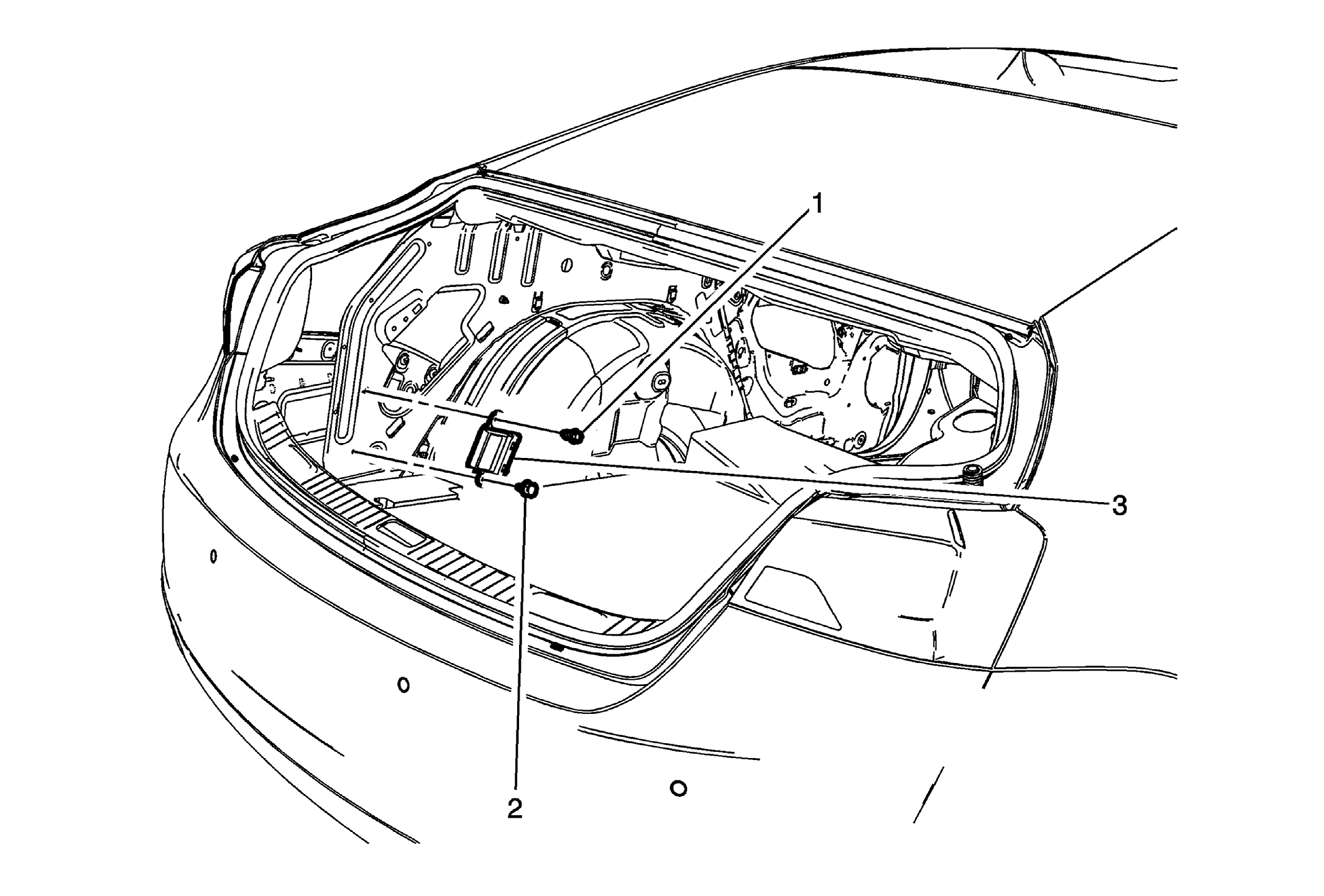

Fig 1: Rear Object Alarm Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim panel enough to gain access to the module. Refer to Rear Compartment Side Trim Replacement - Left Side (Without HP6) , Rear Compartment Side Trim Replacement - Left Side (With HP6) .
1	Rear Object Alarm Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Rear Object Alarm Control Module Retainer
3	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .
