Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

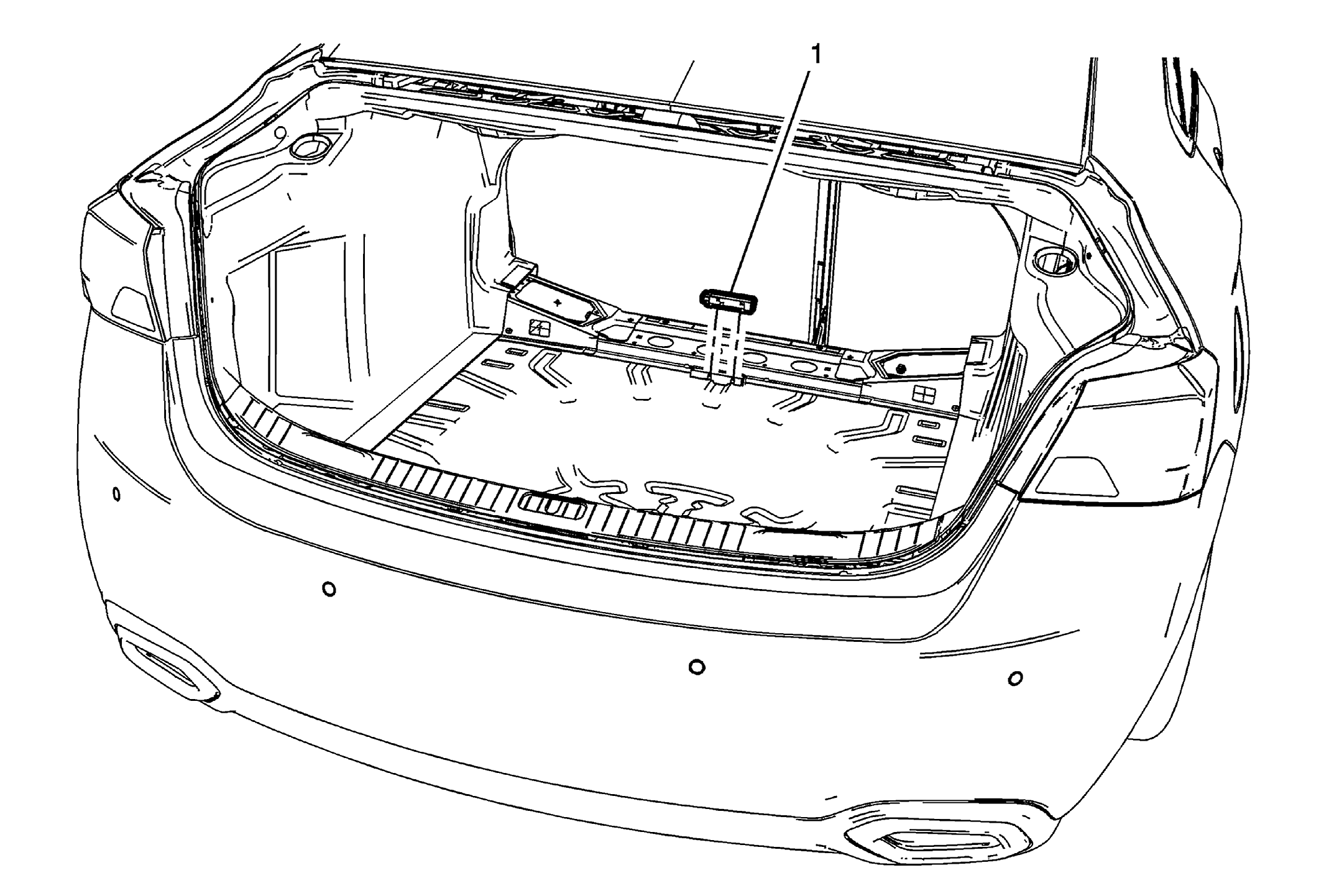

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment
GM2964061Courtesy of GENERAL MOTORS COMPANY
Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

Callout Component Name
Preliminary Procedure
Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (Without HP6) , Rear Compartment Floor Panel Trim Replacement (With HP6) .
1 Ignition Lock Key Transmitter Antenna

Procedures

  1. Disconnect the electrical connector.
  2. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
