Impala LS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics
>>
Keyless Entry - Active
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry - Active

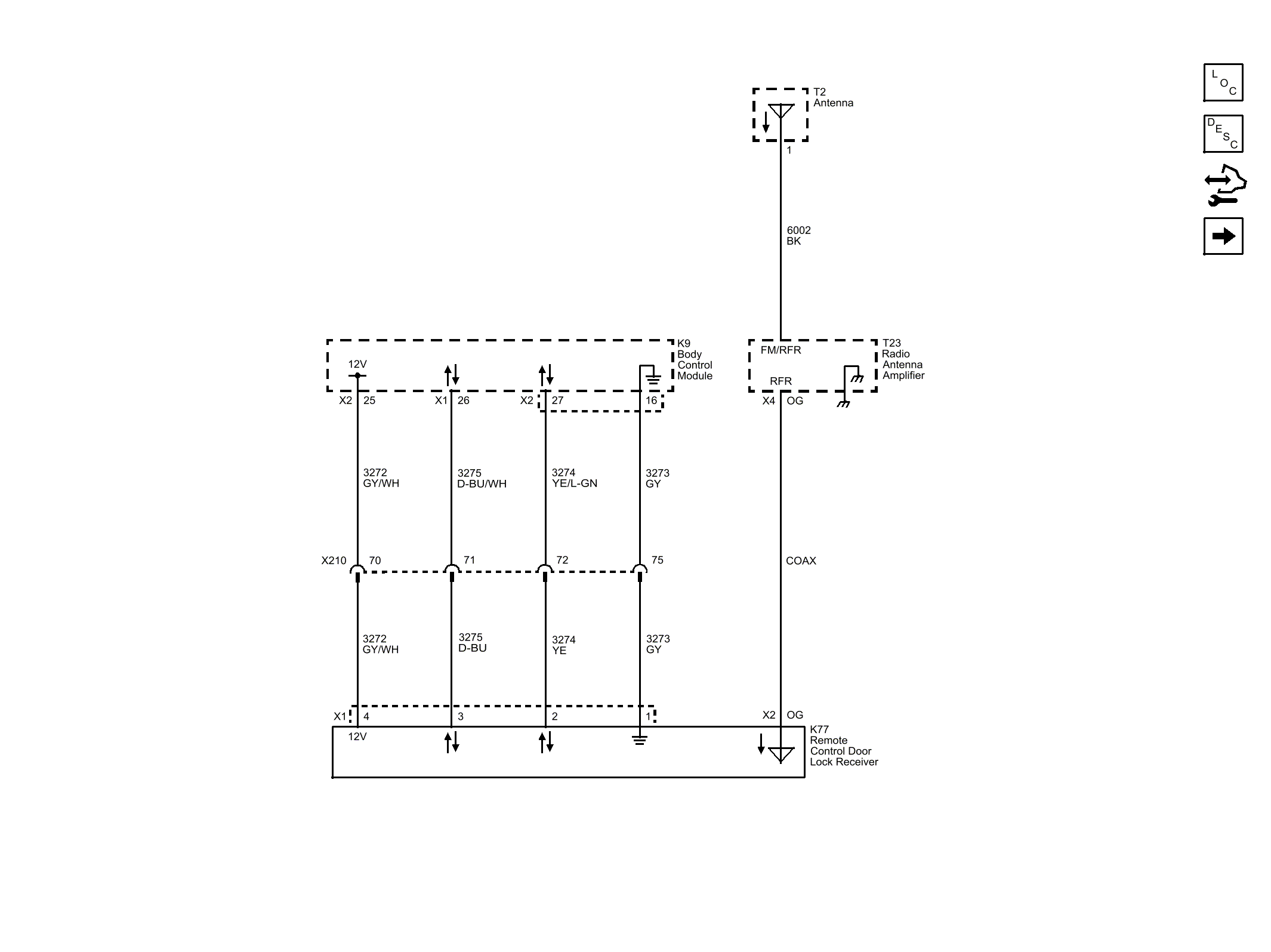

Fig 1: Keyless Entry Wiring Schematic - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
