Behind the Instrument Panel Components

Behind the Instrument Panel Components

Items
1:  K84 Keyless Entry Control Module (ATH or BTM) K84 Keyless Entry Control Module X1 (ATH or BTM)K84 Keyless Entry Control Module X2 (ATH or BTM)K84 Keyless Entry Control Module X4 (ATH)
2:  F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
3:  K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
4:  F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger

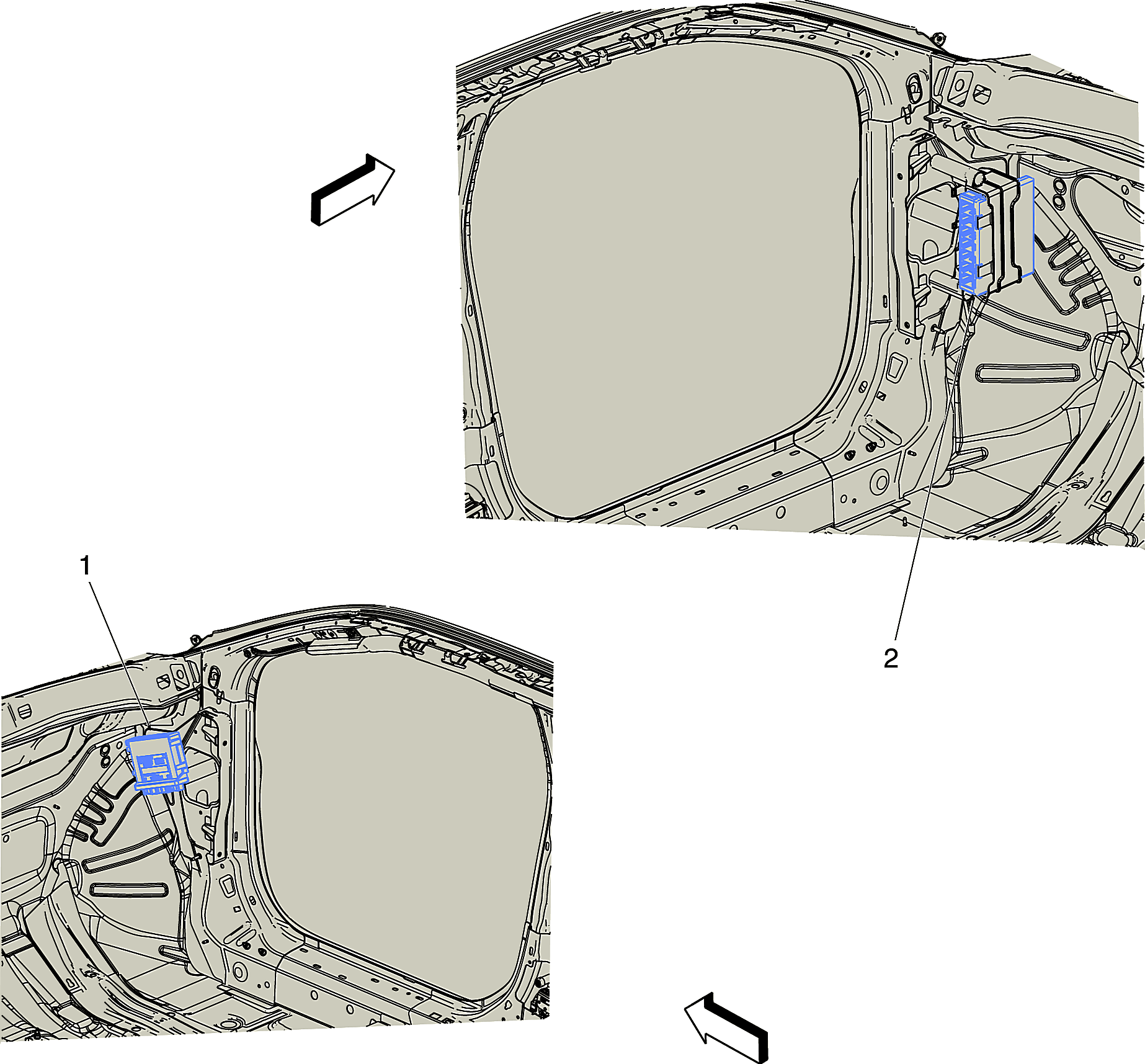

Fig 1: Behind the Instrument Panel Components
GM2913030Courtesy of GENERAL MOTORS COMPANY
