Bottom of Instrument Panel Components

Bottom of Instrument Panel Components

Items
1:  B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2:  K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
3:  B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

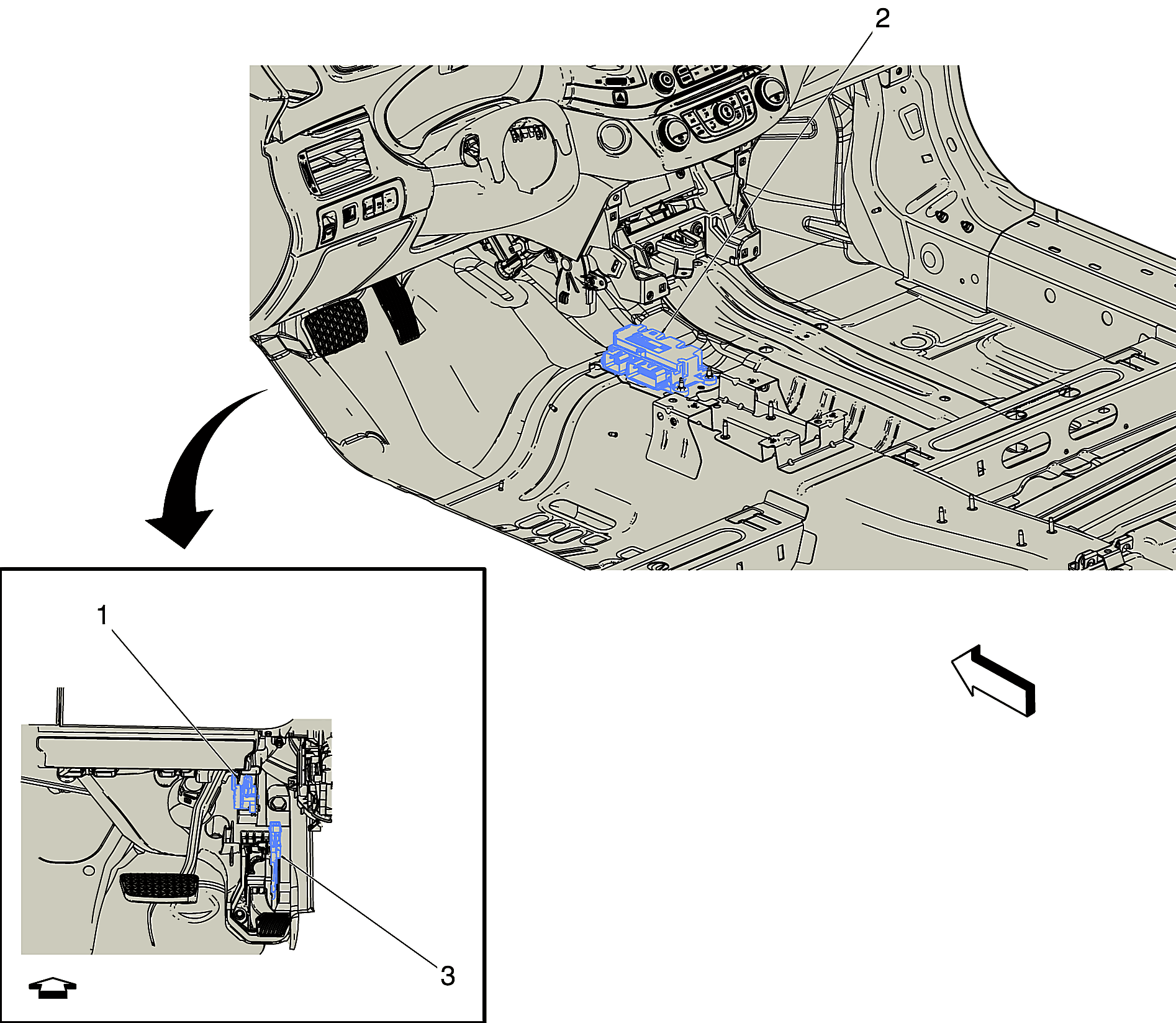

Fig 1: Bottom of Instrument Panel Components
GM2913029Courtesy of GENERAL MOTORS COMPANY
