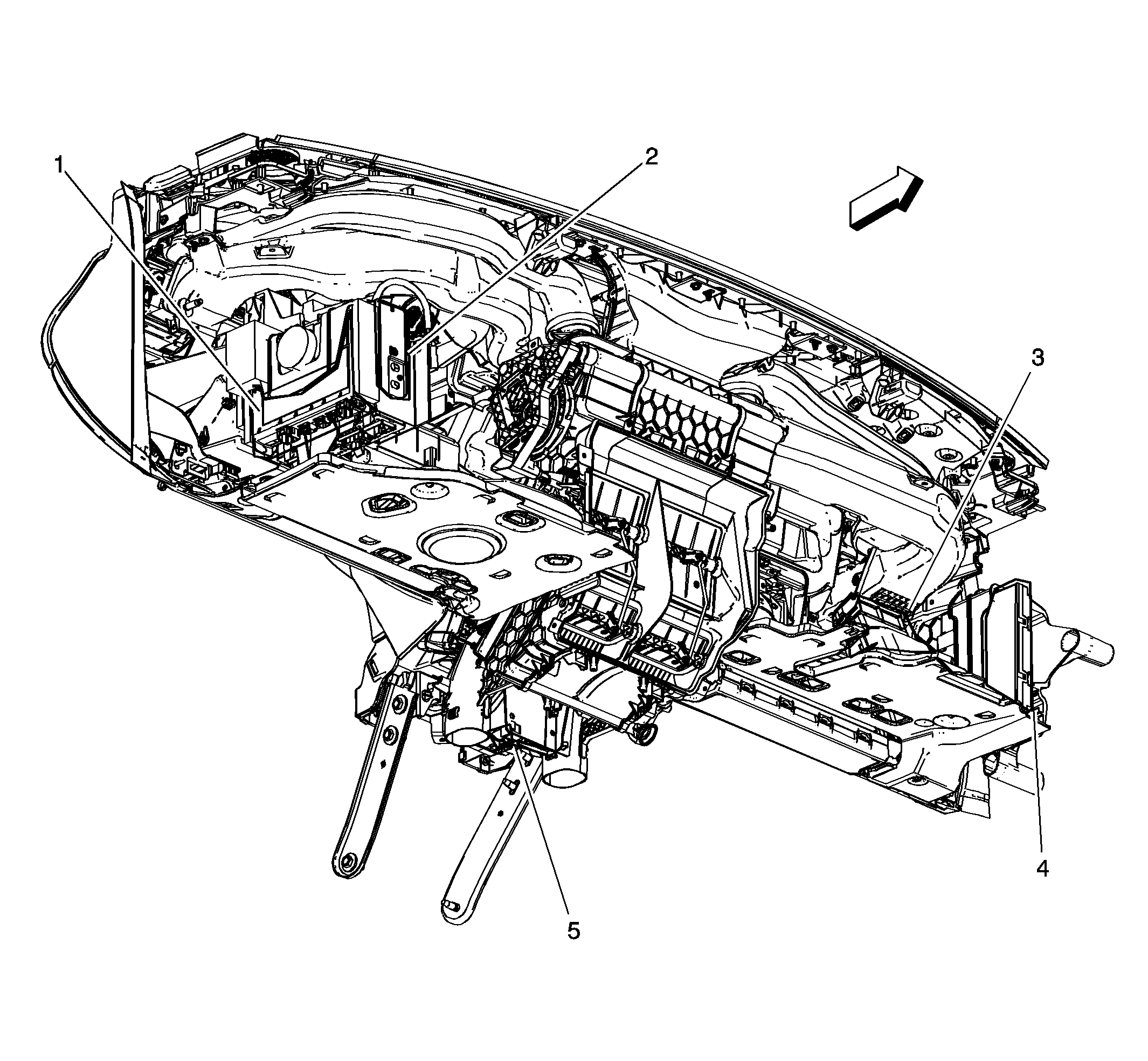

Rear of Instrument Panel Components
Rear of Instrument Panel Components
| Items |
|---|
| 1: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 (IO5 or IO6)K74 Human Machine Interface Control Module X2 (IO5 or IO6)K74 Human Machine Interface Control Module X3 (IO5 or IO6)K74 Human Machine Interface Control Module X4 (IO5 or IO6)K74 Human Machine Interface Control Module X5 (IO5 or IO6)K74 Human Machine Interface Control Module X7 (IO6) |
| 2: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X4A11 Radio X6 (U2K or U2M)A11 Radio X7 (IO3)A11 Radio X8 (IO3) |
| 3: X51A Fuse Block - Instrument Panel |
| 4: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 5: T10J Keyless Entry Antenna - Center Console Front (BTM) T10J Keyless Entry Antenna - Center Console Front (BTM) |
