HVAC Assembly Components (CJ2)

HVAC Assembly Components (CJ2)

Items
1:  B7E Air Temperature Sensor - Duct Right Lower (CJ2)
2:  B7J Air Temperature Sensor - Duct Right Upper (CJ2)
3:  M8 Blower Motor M8 Blower Motor
4:  M6R Air Temperature Door Actuator - Right (CJ2) M6R Air Temperature Door Actuator - Right (CJ2)
5:  B39 A/C Evaporator Temperature Sensor
6:  B7H Air Temperature Sensor - Duct Left Upper (CJ2)
7:  B7D Air Temperature Sensor - Duct Left Lower (CJ2)
8:  M6L Air Temperature Door Actuator - Left (CJ2) M6L Air Temperature Door Actuator - Left (CJ2)
9:  M4 Air Inlet Door Actuator M4 Air Inlet Door Actuator

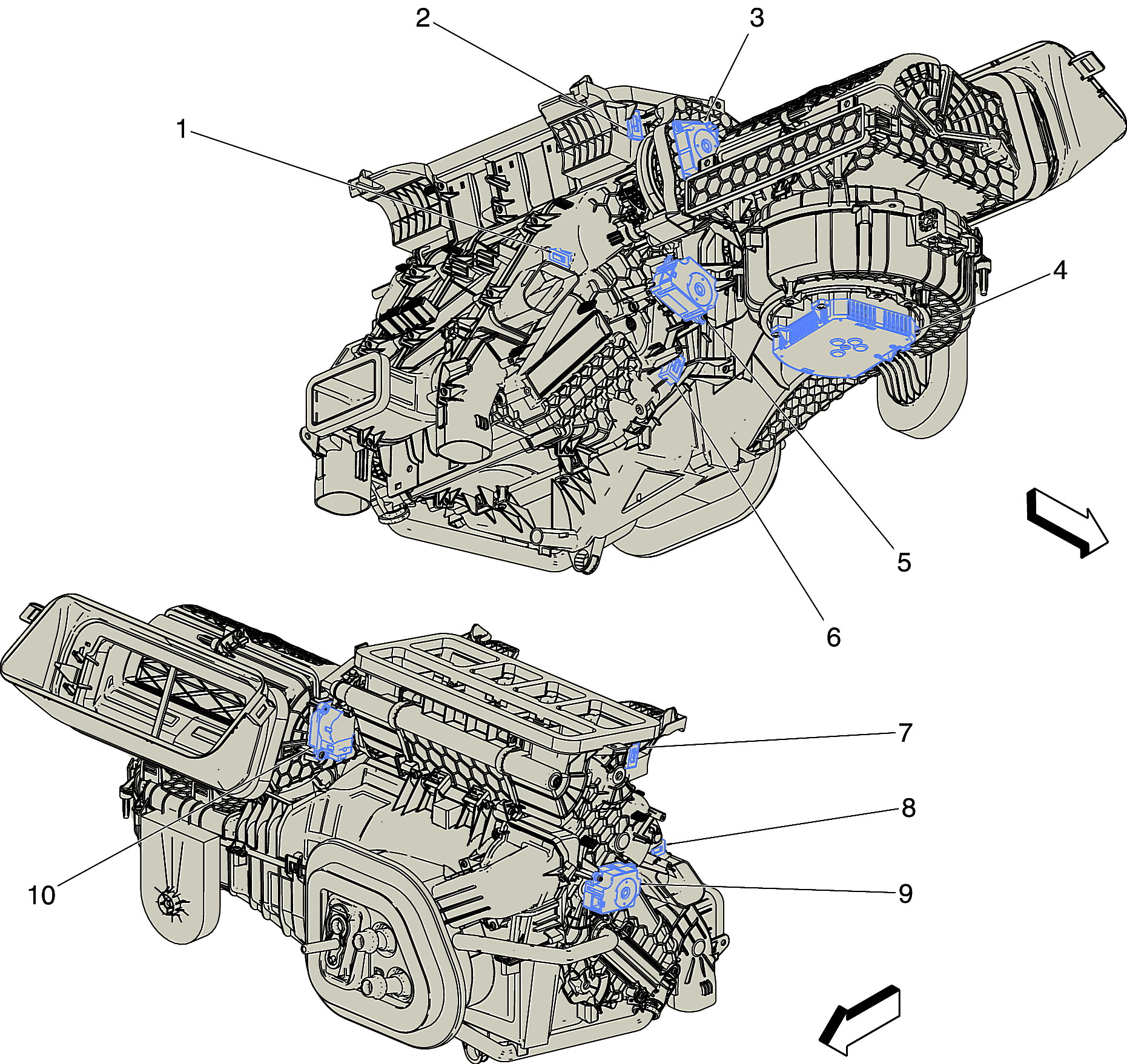

Fig 1: HVAC Assembly Components (CJ2)
GM2913035Courtesy of GENERAL MOTORS COMPANY
