Radio Control Switch Replacement

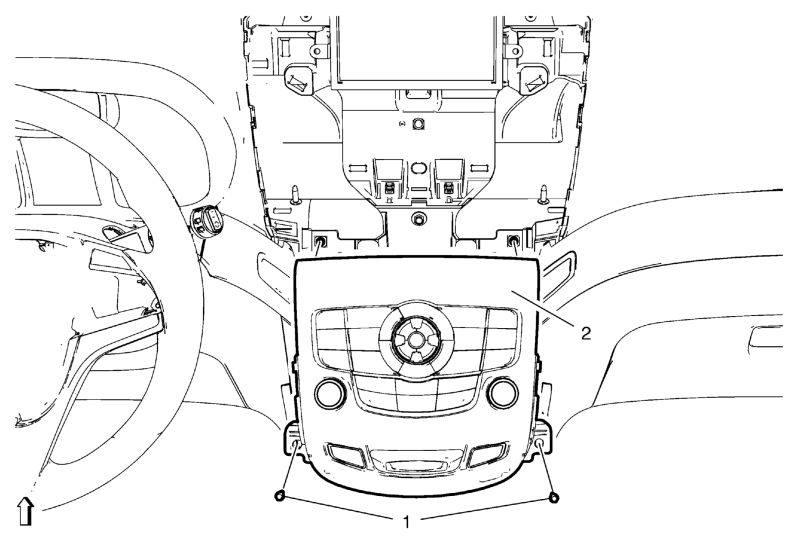

Fig 1: Radio Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement .
1	Radio Control Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio Control Switch Procedures Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement .

Radio Control Switch Bolt (Qty: 2)

CAUTION:

Radio Control Switch
Procedures
Disconnect electrical connector.
