Front Side Door Window Regulator Motor Replacement

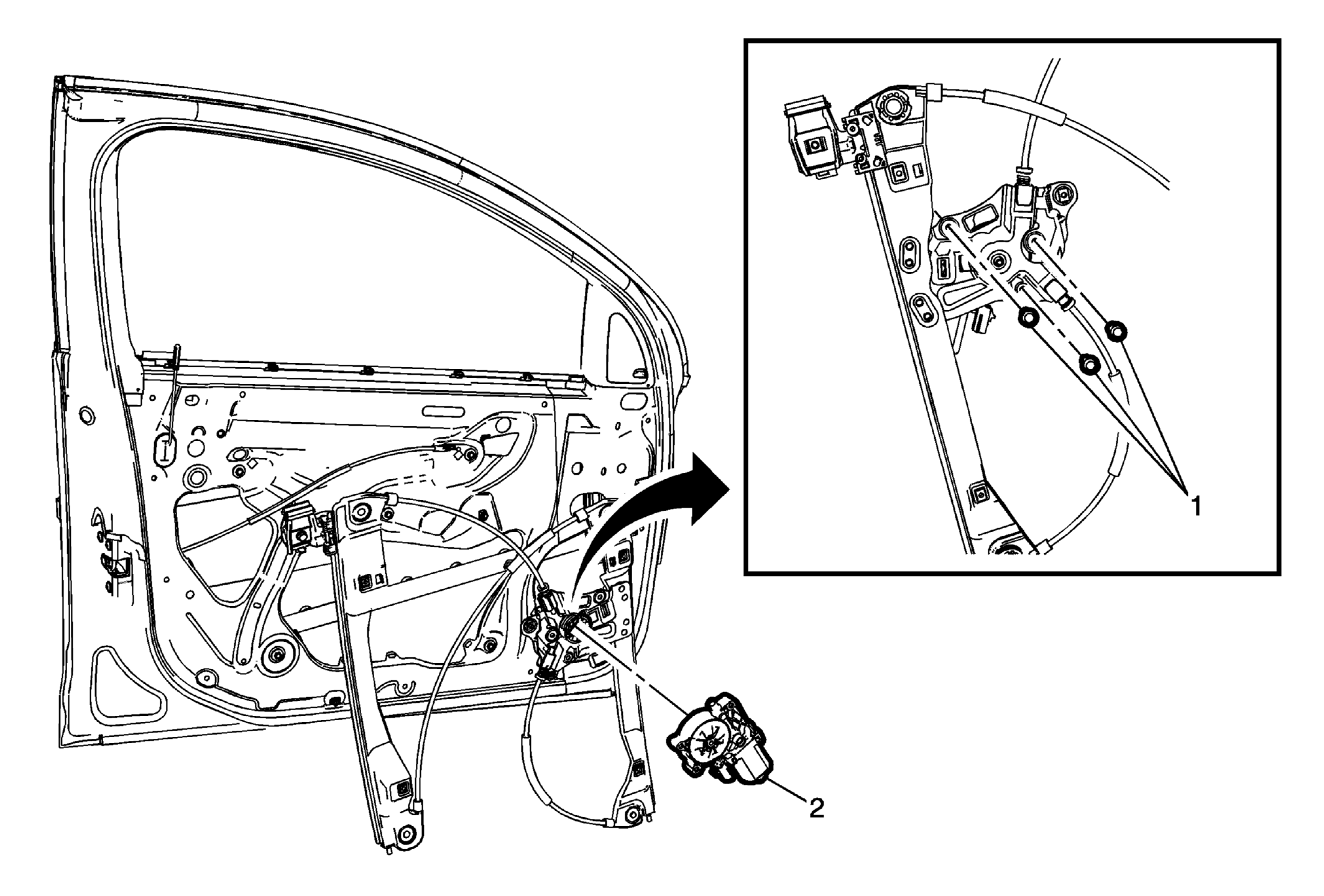

Fig 1: Front Side Door Window Regulator Motor & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Motor Preliminary Procedure After replacing the window regulator motor, it is necessary to reprogram the motor. Refer to Window Motor Programming - Express Function . NOTE: Inspect the door window for proper operation before installing the door trim.
