Installation Procedure

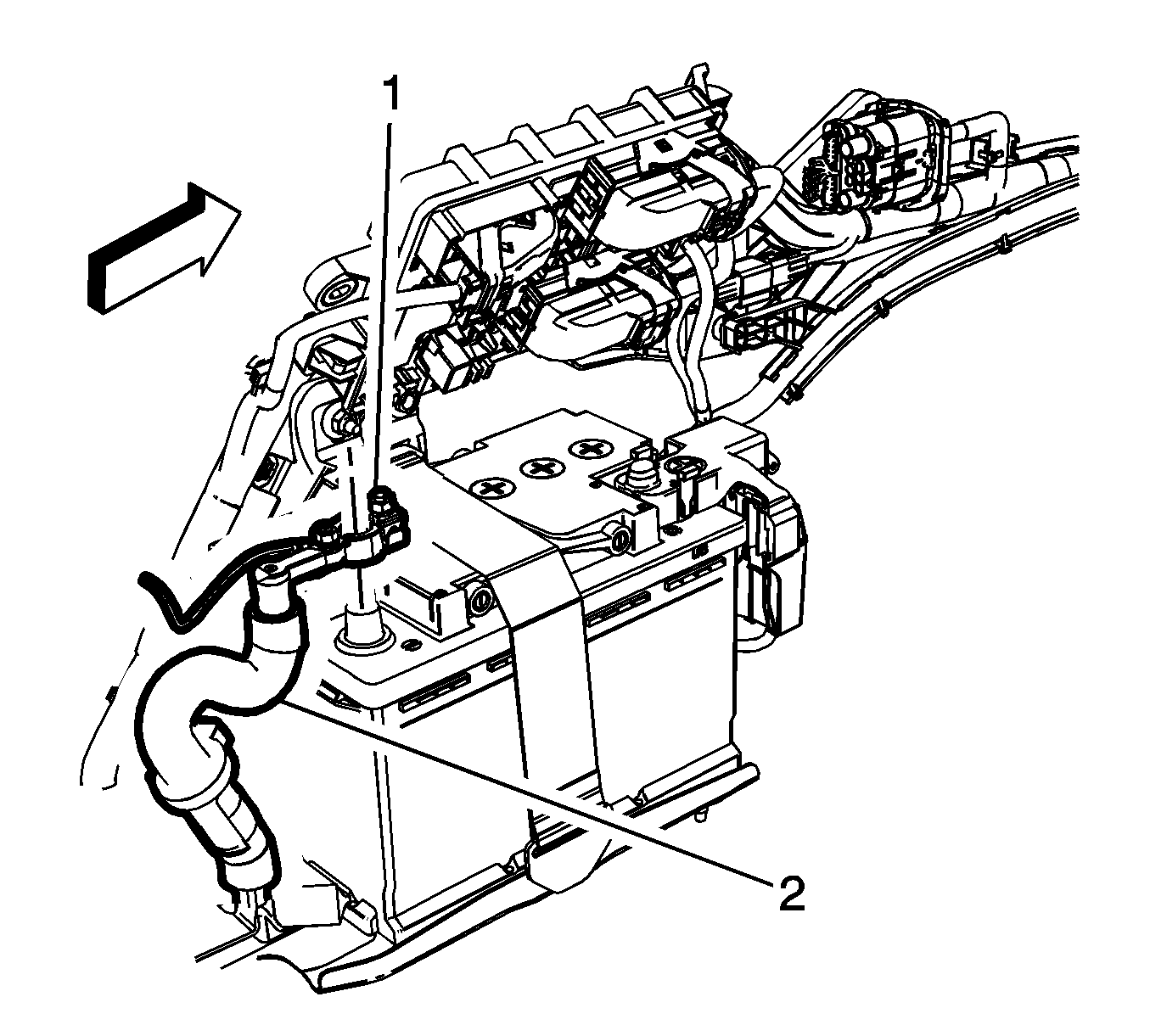

    Fig 1: Battery Negative Cable & Clamp Fastener
    GM3273463Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery negative cable (2) to the battery negative post and tighten the clamp fastener (1) to 5 (44 lb in).

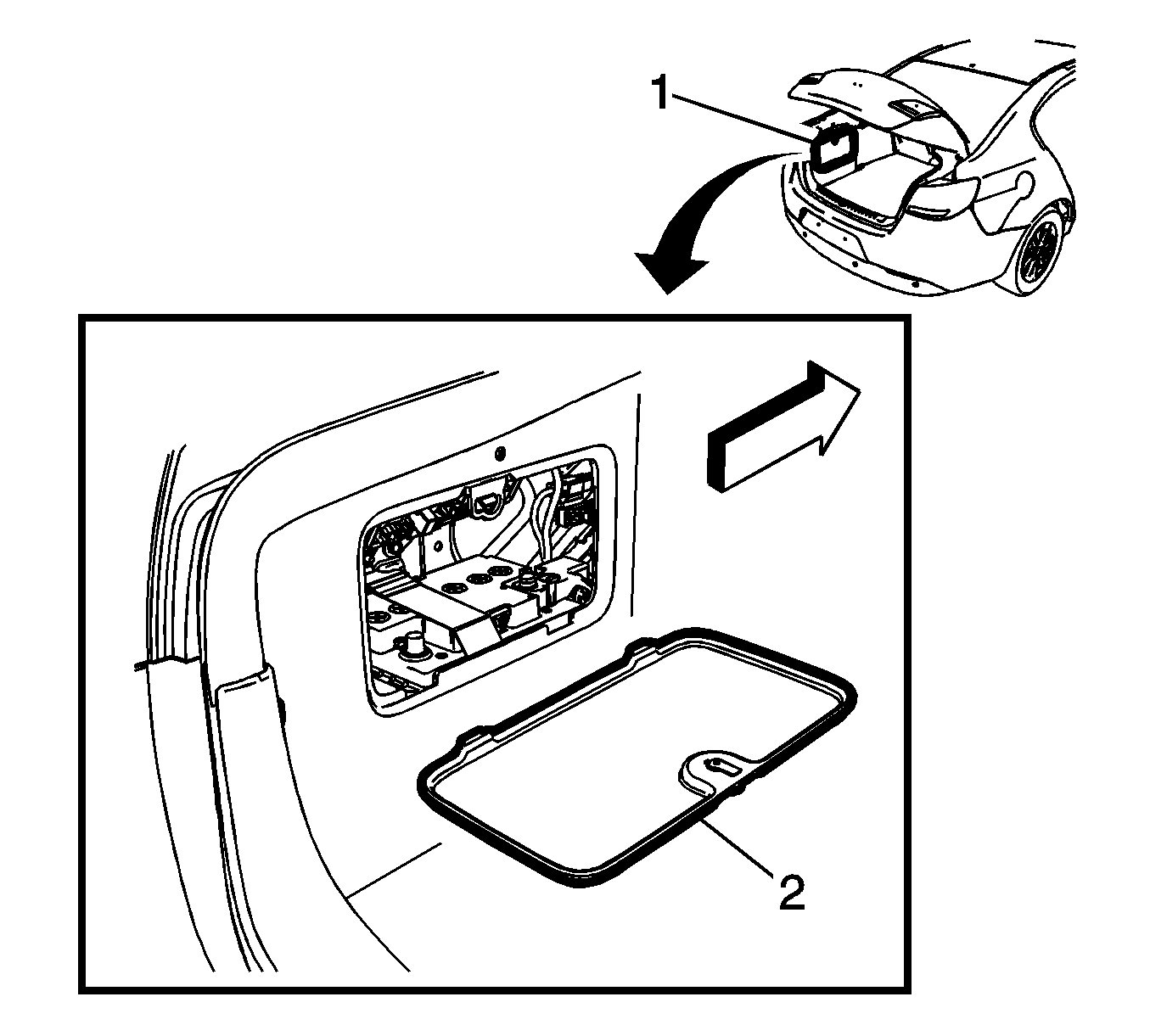

    2. Fig 2: Rear Compartment Side Trim Panel Clip & Access Cover
    GM3226091Courtesy of GENERAL MOTORS COMPANY
  2. Install the access cover (2) to the left rear compartment side trim panel and lock into place with the panel clip (1).
