Generator Bracket Replacement (LS3)

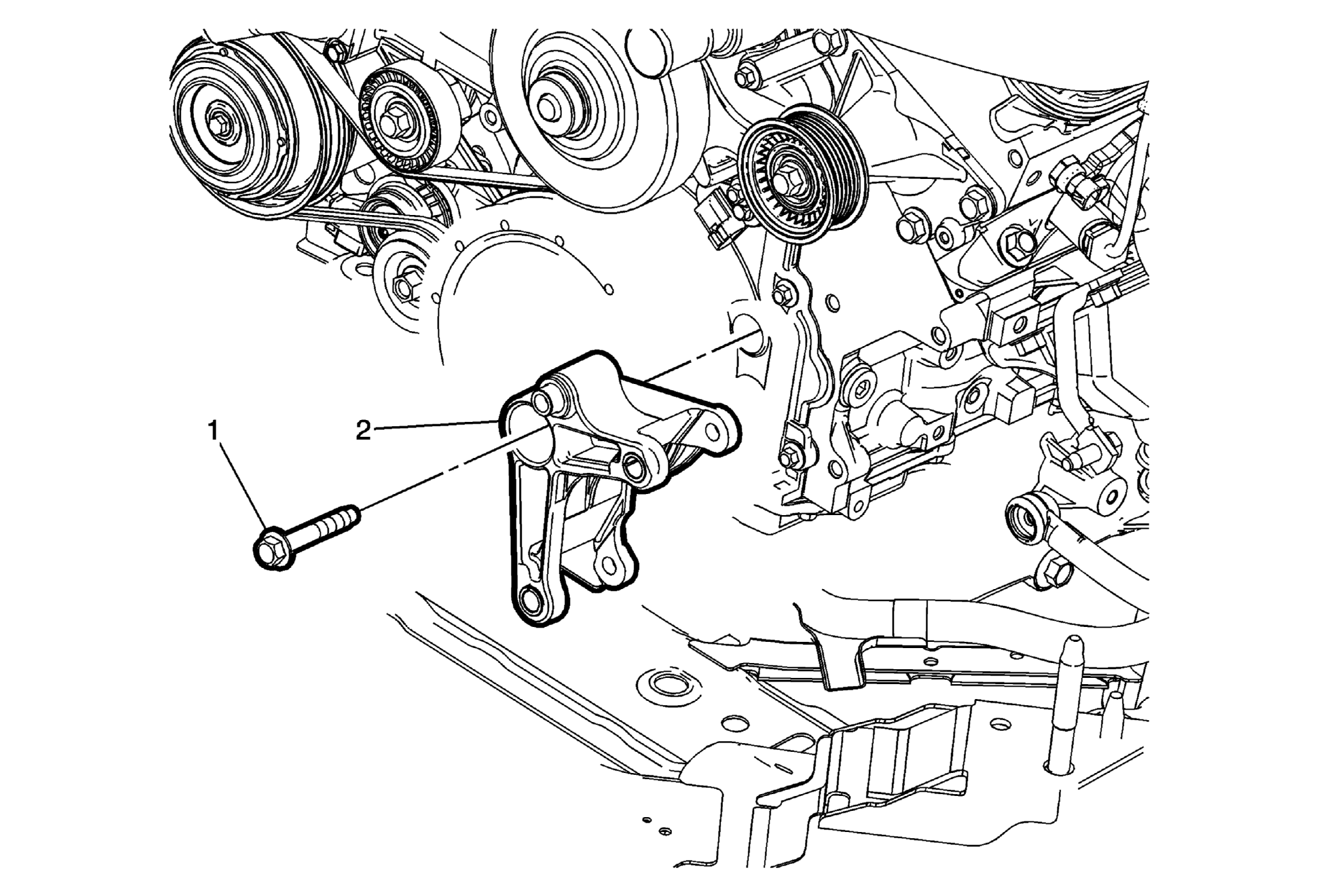

Fig 1: Generator Bracket & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the generator. Refer to Generator Replacement (LS3) . Remove the lower idler pulley. Refer to Drive Belt Idler Pulley Replacement .
1	Generator Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 58 (43 lb ft)
2	Generator Bracket

Callout

Component Name

Preliminary Procedure

Generator Bracket Fastener

CAUTION:

Tighten
58 (43 lb ft)

Generator Bracket
