Subsystem References (2 of 4)

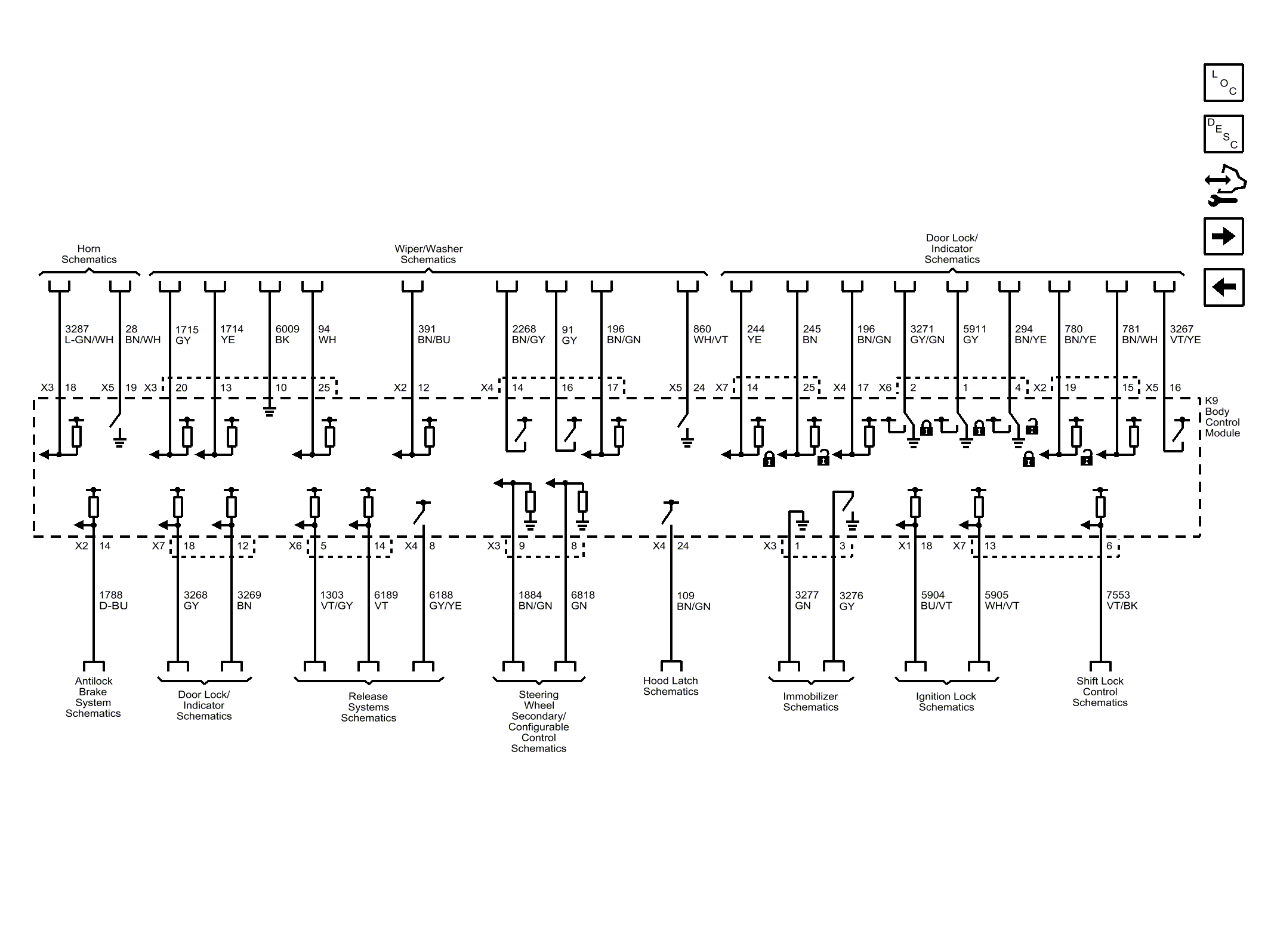

Fig 1: Subsystem References Wiring Schematic (2 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
