Body Control Module Bracket Replacement

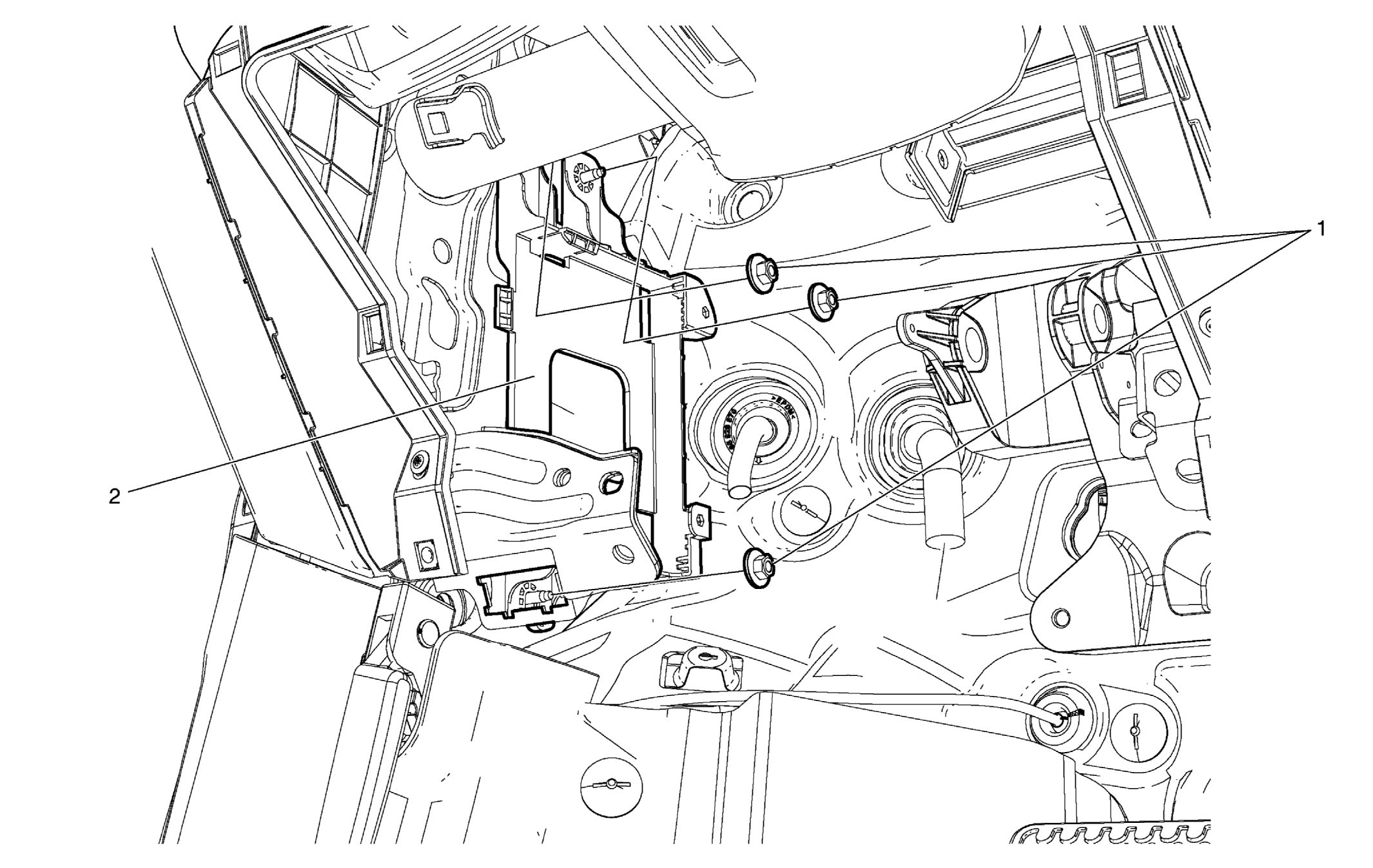

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the body control module. Refer to Body Control Module Replacement .
1	Body Control Module Bracket Nut (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Body Control Module Bracket

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the body control module. Refer to Body Control Module Replacement .

Body Control Module Bracket Nut (Qty: 3)

CAUTION:

Body Control Module Bracket
