Body Control Module Replacement

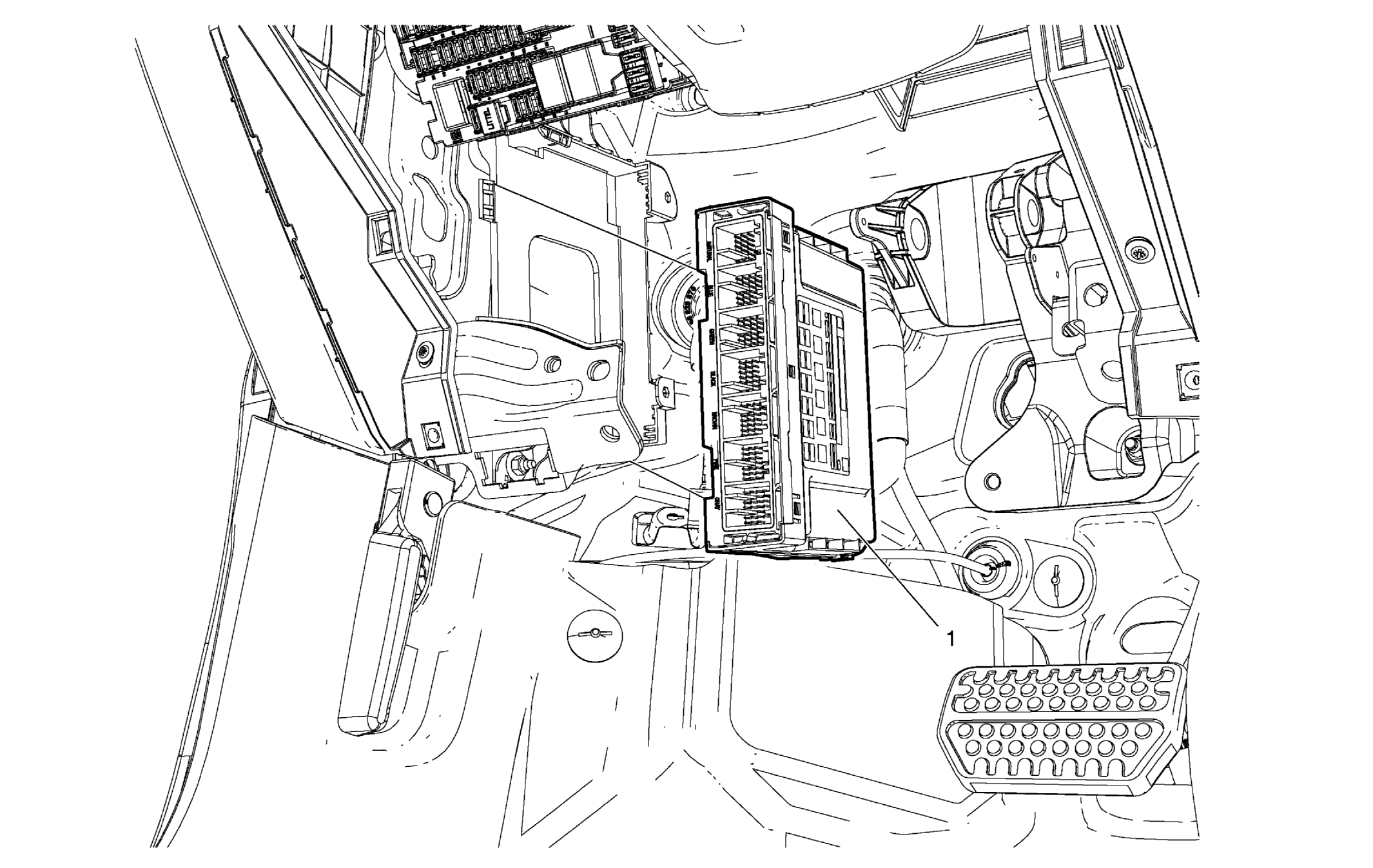

Fig 1: Body Control Module
GM2754162Courtesy of GENERAL MOTORS COMPANY
Body Control Module Replacement

Callout Component Name

Preliminary Procedures

  1. Prepare body control module for replacement. Refer to Control Module References .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove instrument panel lower reinforcement bracket. Refer to Instrument Panel Lower Reinforcement Bracket Replacement .
1 Body Control Module

Procedure

  1. Disconnect electrical connector.
  2. Unclip body control module from body control module bracket.
  3. After replacement, refer to Control Module References for programming and set up procedures.
