Installation Procedure

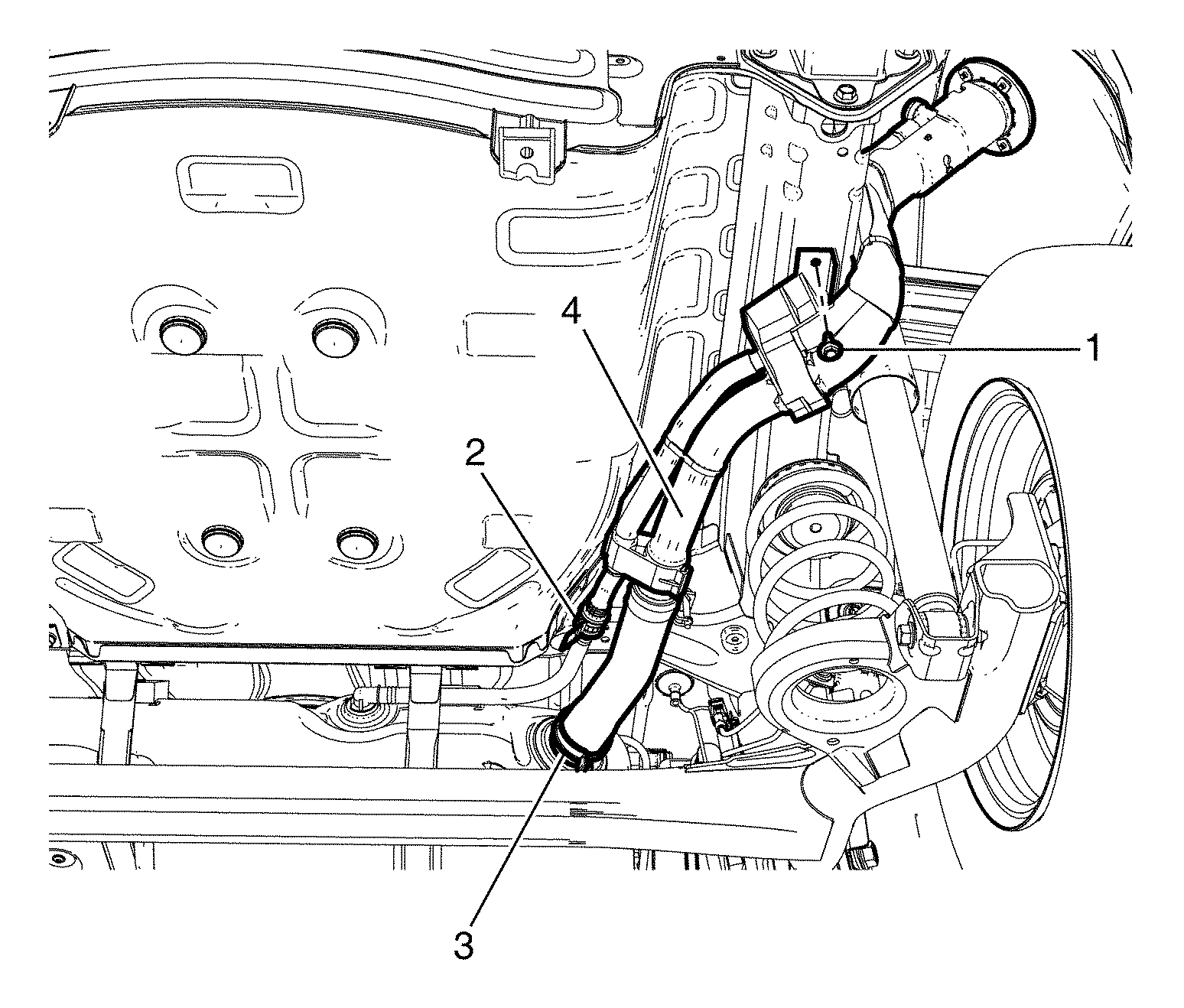

    Fig 1: Fuel Tank Filler Hose And Clamp
    GM3416008Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank filler pipe assembly (4).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel tank filler pipe lower bolt (1) and tighten to 6 (53 lb in).
  3. Connect the fuel tank filler hose (3) and clamp.
  4. Connect the fuel tank vent pipe (2) and clamp.
  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
    6. Fig 2: Fuel Tank Filler Pipe
    GM2810103Courtesy of GENERAL MOTORS COMPANY
  6. Install the fuel filler pipe upper bolts (1) and tighten to 6 (53 lb in).
  7. Close the fuel filler cap and filler door.
