Fuel Tank Fuel Pump Module Replacement (LFM)

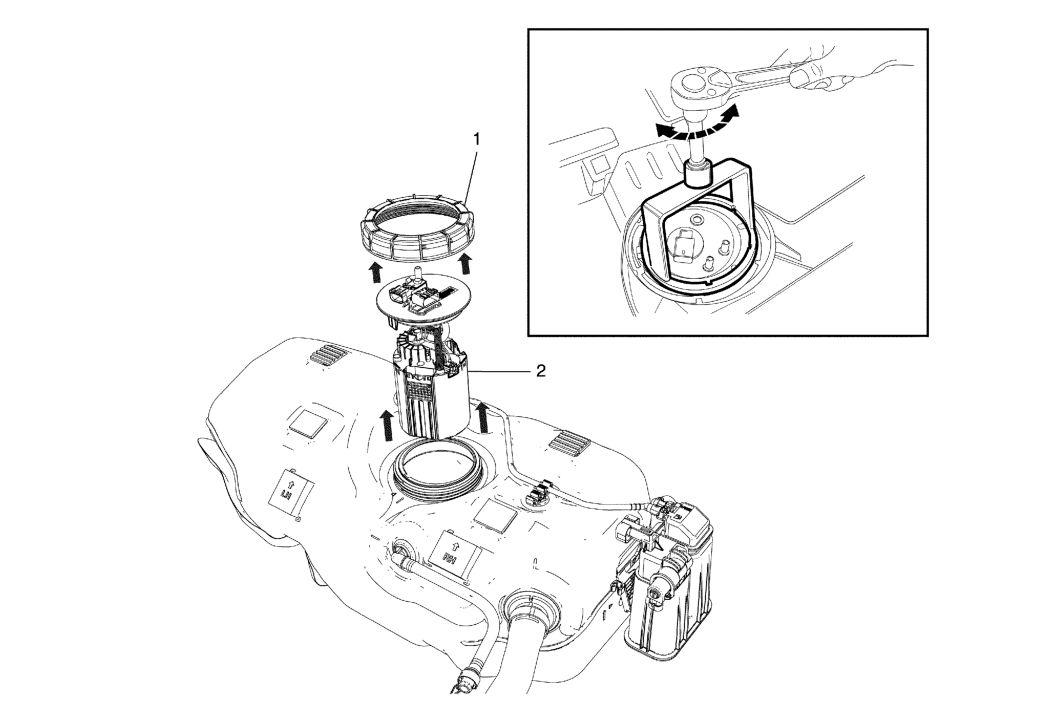

Fig 1: Fuel Tank Fuel Pump Module (LFM)
GM2327613Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Fuel Pump Module Replacement (LFM)

Callout Component Name

Preliminary Procedures

  1. Relieve the fuel pressure. Refer to Fuel Pressure Relief .
  2. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Fold rear seat, remove fuel pump cover, and disconnect fuel line and wiring harness.
1 Fuel Pump Lock Ring
Procedure
Remove fuel pump lock ring using EN-50167  ring.
Special Tools
EN-50167  Fuel Pump Lock Ring Remover/Installer
For equivalent regional tools, refer to Special Tools (Diagnostic Tools) .
2 Fuel Pump
Procedure
Remove fuel pump assemble above.
