Knock Sensor Replacement

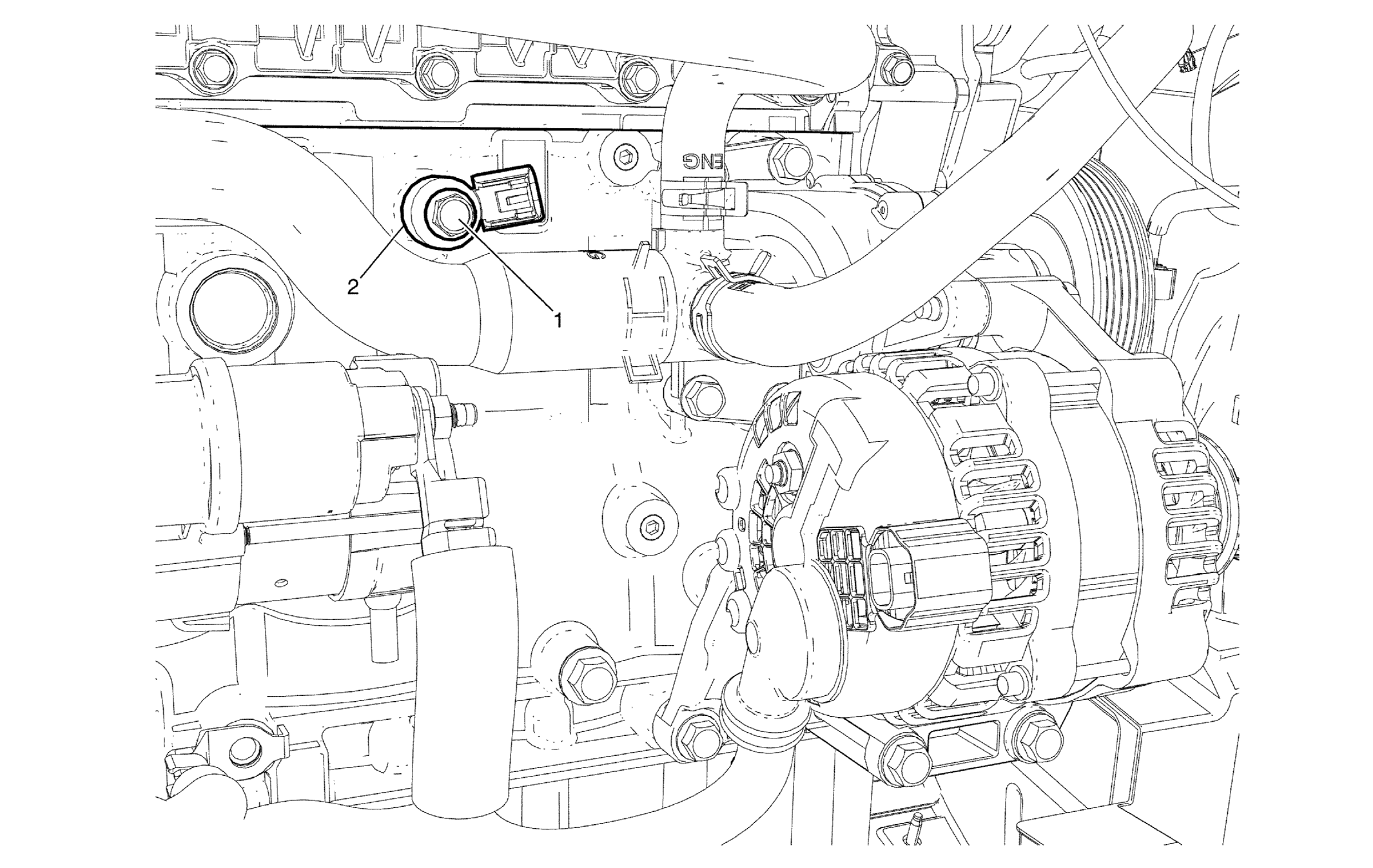

Fig 1: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the starter connector. Refer to Starter Replacement . Disconnect the generator connector. Refer to Generator Replacement . Remove the intake manifold rear bracket. Refer to Lower Intake Manifold Replacement (LFM) . Disconnect the knock sensor wiring harness connector.
1	Knock Sensor Retaining Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the knock sensor retaining bolt. Tighten 25 (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the starter connector. Refer to Starter Replacement .
Disconnect the generator connector. Refer to Generator Replacement .
Remove the intake manifold rear bracket. Refer to Lower Intake Manifold Replacement (LFM) .
Disconnect the knock sensor wiring harness connector.

Knock Sensor Retaining Bolt

CAUTION:

Procedure
Remove the knock sensor retaining bolt.
Tighten
25 (18 lb ft)

Knock Sensor
