Subsystem References (5 of 5) Wiring Schematics

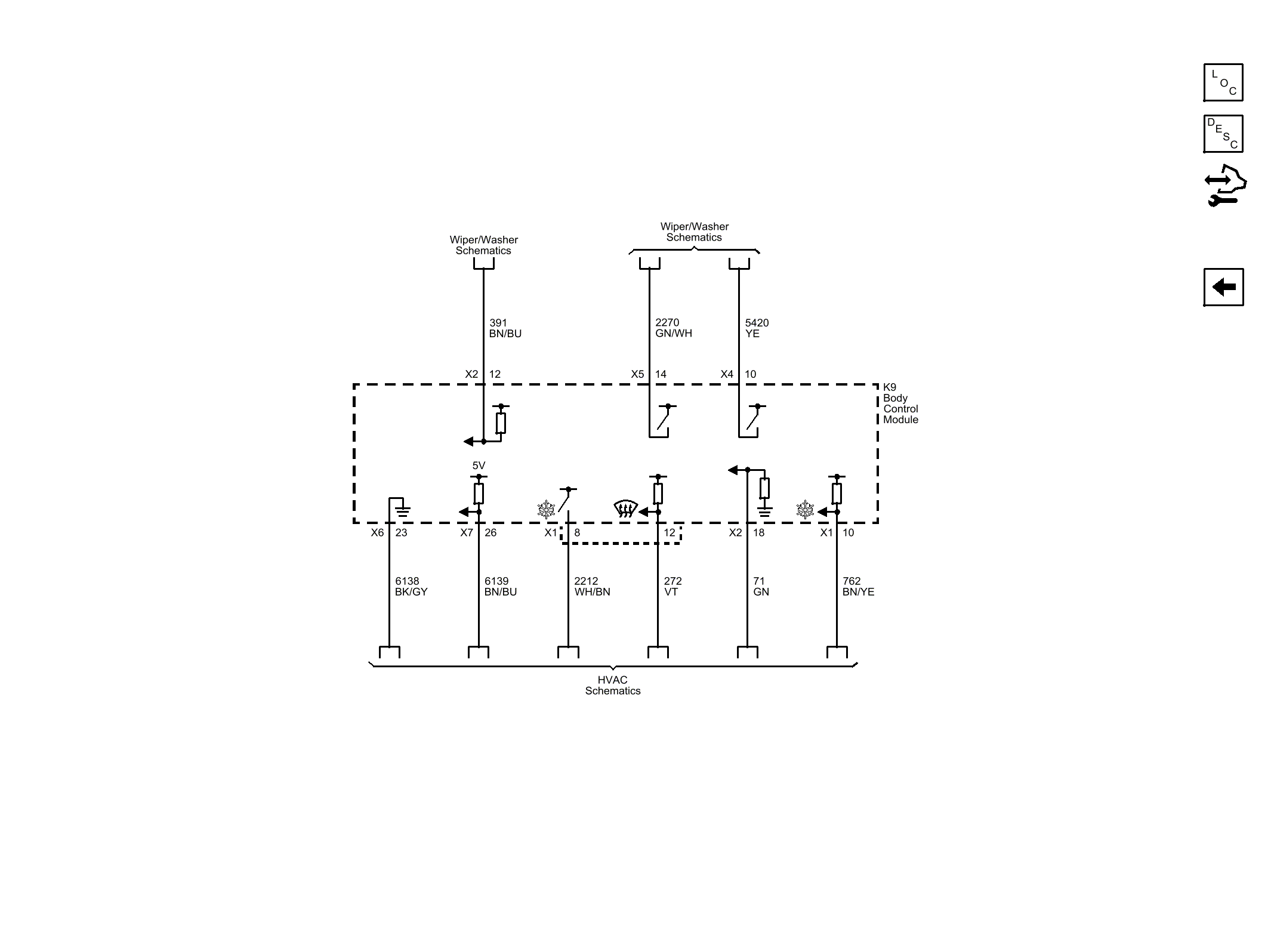

Fig 1: Subsystem References (5 of 5) Wiring Schematic
GM3273778Courtesy of GENERAL MOTORS COMPANY
